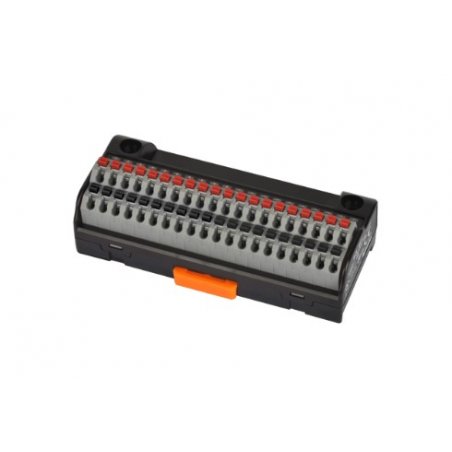

ACL-40T Bloque de terminales 40 EA 5.0mm
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Number of terminal | 40 EA |
---|---|
Terminal type | Screwless |
Terminal pitch | 5.0mm |
Material | CASE, BASE: PC |
Weight | Approx. 146g(approx. 79g) |
Rated voltage | ≤250VDC |
Rated current | Max. 10A |
Common type | Up +COM, Down -COM |
Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mm²)(60℃ only) |
Stripped wire length | 8 to 10mm |
Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
Dielectric strength | 3,000VAC~ 50/60Hz for 1 minute (between open terminals) |
Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
