SI8-C1 NPN NO H1 sensor inductivo de 8mm rango 15mm 6-30VDC I08000011

Referencia SI8-C1 NPN NO H1

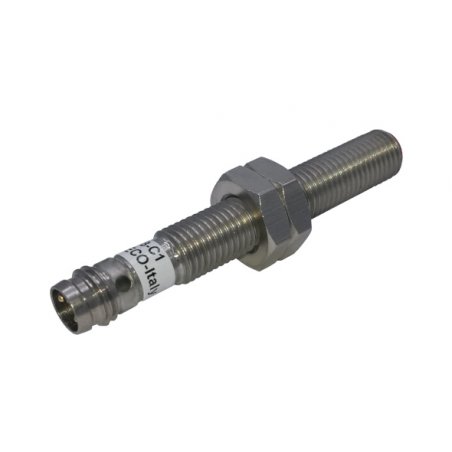

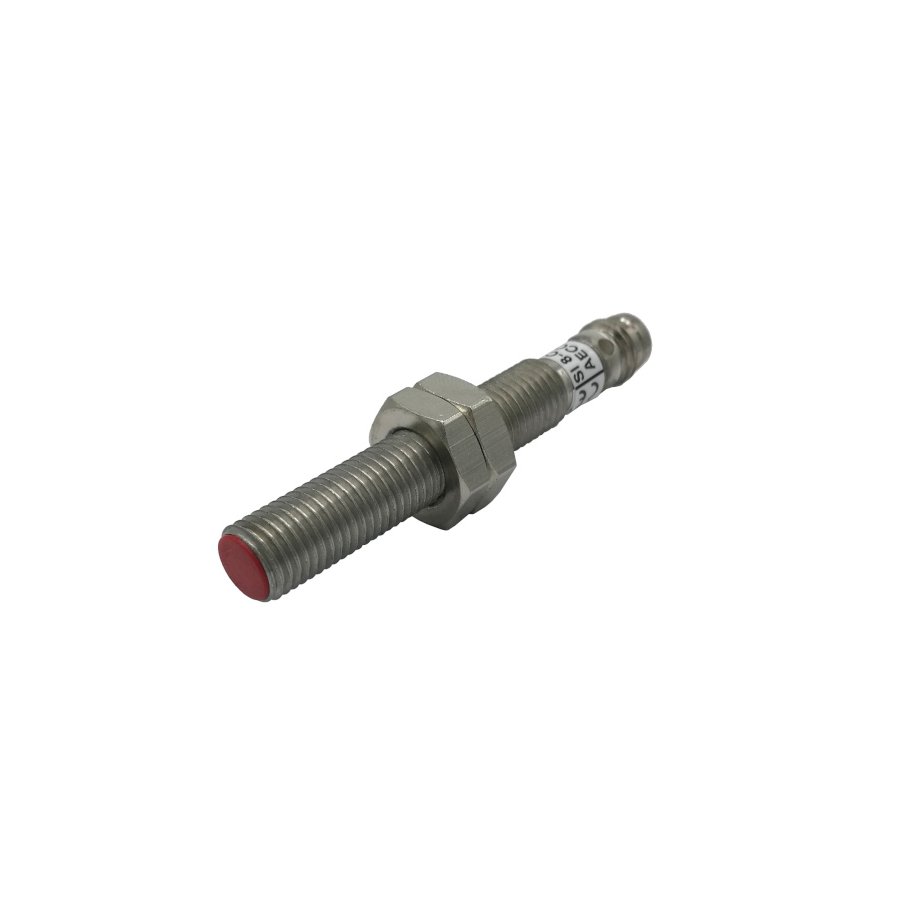

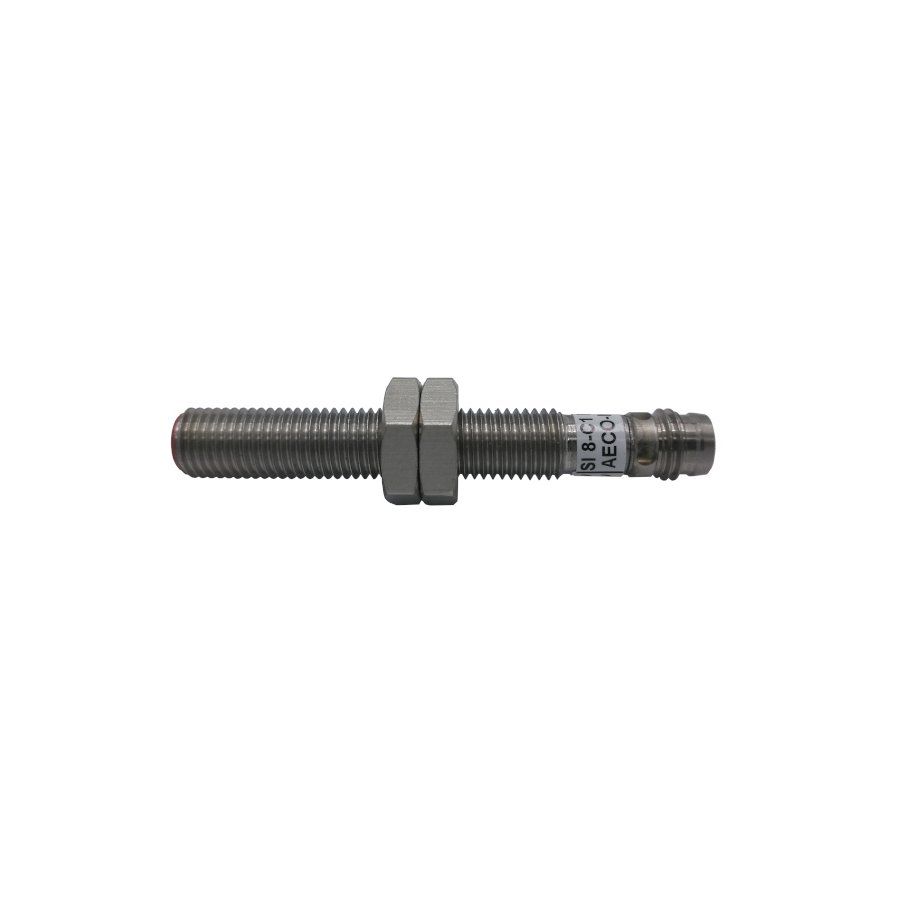

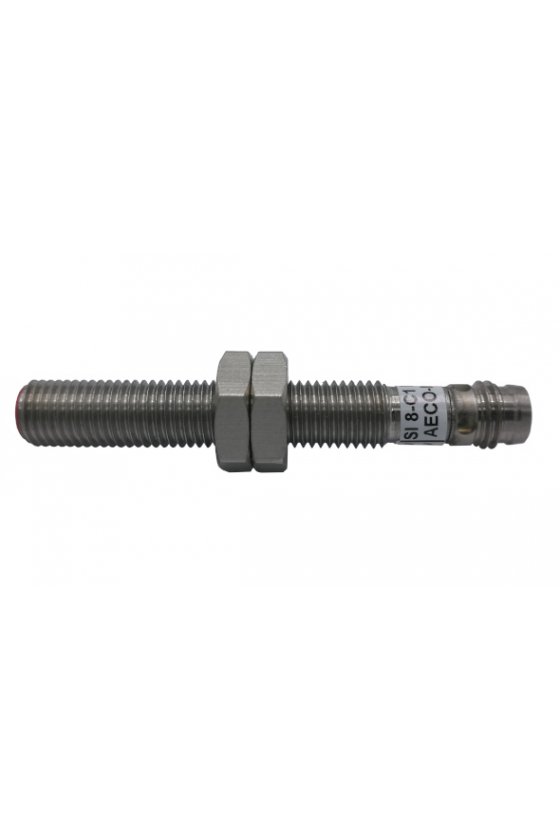

Sensor de proximidad inductivo AECO, 8 mm de diámetro, acero inoxidable, 6-30 VCC, 3 hilos, NPN, blindado, distancia de detección de 1,5 mm, salida NA, desconexión rápida M8 (se adquiere el cable por separado) **I08000011**

FICHA TECNICA

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Electrical data
Power supply type :	Direct current
Working voltage [V]:	6 ÷ 30
Current consumption [mA]:	< 12 mA @ 24Vdc
Protection class :	III
Reverse polarity protection :	Presente
Outputs
Electrical design :	NPN
Function :	NO
Max voltage drop [V]:	< 1.8
Max output current [mA]:	200
Max switching frequency [Hz]:	2000
Short circuit protection :	Present
Overload protection :	Present
Detection zone
Switching distance-Sn [mm]:	1.5
Real sensing distance-Sr [mm]:	1.5 ±10%
Operative distance-So [mm]:	0 ÷ 1.22
Accuracy and Deviations
Correction factor :	Stainless steel: 0.9 - Brass: 0.5 - Aluminium: 0.4 - Copper: 0.4
Hysteresis [%Sr]:	< 10
Switching point drift [%Sr]:	-10 ÷ +10
Repeatability [%Sn]:	< 3
Environmental conditions
Temperature limits [°C]:	-25 ÷ +70
IP rating :	IP65-IP66-IP67 (depending on connector )
Display and control elements
Display :	Output switching status - 4 x 90° LED: Yellow
Mechanical data
Housing :	Threded type
Thread designation :	M8x1
Dimensions [mm]:	M8x1 - L=57
Materials :	Housing: AISI 303 - Sensing area: POM red - Lock nuts: Nickel-plated brass
Mounting :	Embeddable
Weigth [g]:	30
Electrical connection
Connector :	H1 type - M8X1 - gold plated contacts
Compliance to Standards / Directives
Directives compliance :	2014/30/EU -Electromagnetic compatibility directive (EMC)
Standards compliance :	EN60947-5-2 - Product standard
