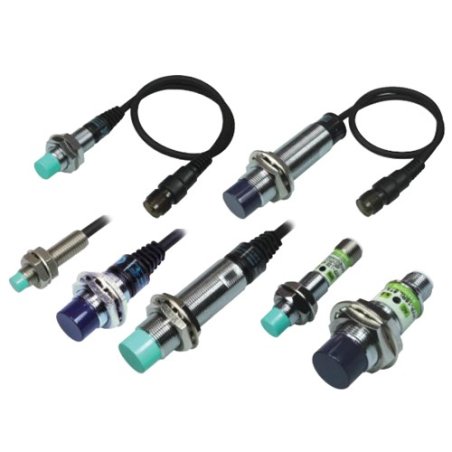

UP8RD2NA Sensor Inductivo saliente 8x2mm NPN NA con cable 5-35vcd

Referencia UP8RD2NA

UP8RD2NA Sensor Inductivo saliente 8x2mm NPN NA con cable 5-35vcd.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

UP8RD2NA Sensor Inductivo saliente 8x2mm NPN NA con cable 5-35vcd.

Model	Code						Information
UP		-					inductive type proximity sensor
Sensing area size	8						M8
	12						M12
	18						M18
	30						M30
Structure type		RM					Round type Shield
		RD					Round type None Shield
		RLM					Long round type shield(M8 and M12 are excluded)
		RLD					Long round type None shield (M8 and M12 are excluded)
Sensing Distance			1.5				Only for UP-RM1.5
			2				Only for UP8-RD2, UP12-RM2
			4				Only for UP12-RM4, UP12-RD4
			5				Only for UP18-RM5, UP18-RLM5
			7				Only for UP18-RM7
			8				Only for UP12-RD8, UP18-RD, UP18-RLD
			10				Only for UP30-RM10, UP30-RLM10
			14				Only for UP18-RD14
			15				Only for UP30-RM15, UP30-RD15, UP30-RLD15
			25				Only for UP30-RD25
Power and Output type				N			D.C NPN output
				P			D.C PNP output
				A			A.C 2 wire type
				T			D.C 2 wire type(Polarity)
				U			D.C 2 wire type(No polarity) ※ But M8 is excluded
Output state					A		Normal open(N.O)
Output state					C		Normal close(N.C)
Connection structure						*	No indication (Cable type)
						CR	Relay connector type
						C	Connector type
