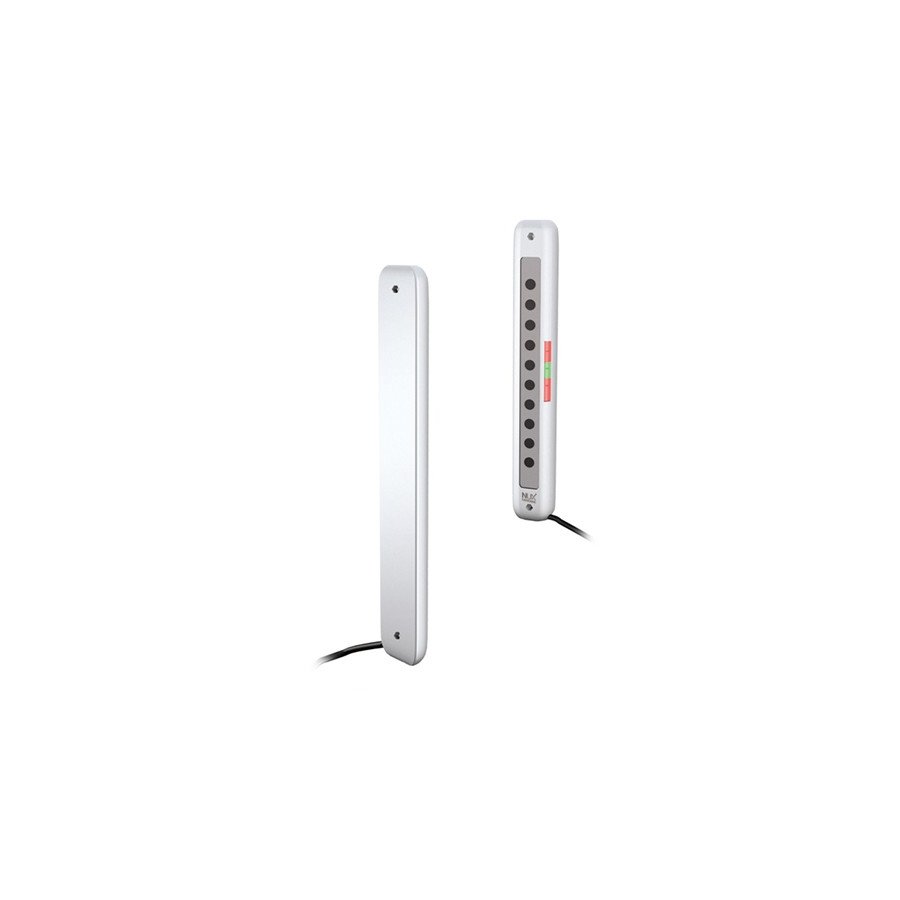

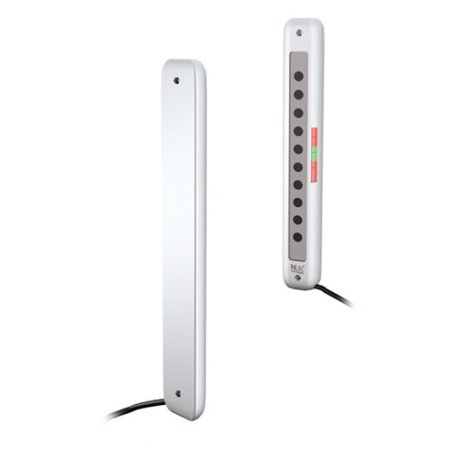

Apperance |
![](http://eng.hynux.com/up_img/detail/pas250.jpg) |
Model |
NPN |
PAS-T4N |
PAS-T8N |
PAS-T12N |
PAS-T16N |
PAS-T20N |
PNP |
PAS-T4P |
PAS-T8P |
PAS-T12P |
PAS-T16P |
PAS-T20P |
Type |
Through beam |
Sensing distance |
5 m |
Detection object |
Opaque object of over Ø30 mm |
Optical axis pitch |
20 mm |
Number of optical axis |
4 |
8 |
12 |
16 |
20 |
Sensing range |
60 mm |
140 mm |
220 mm |
300 mm |
380 mm |
Power voltage |
12 ~ 24 V d.c (Ripple Max. ±10%) |
Current consumption |
Max. 80 mA |
Max. 90 mA |
Max. 100 mA |
Max. 110 mA |
Max. 120 mA |
Output range |
NPN open collector output-Load current : Max. 100 ㎃, |
Load voltage : Max. 30 V DC, Residual voltage : Max. 1 V |
PNP open collector output-Load current : Max. 100 ㎃, Output voltage : (Power voltage-over 2.5 V) |
|
Operating mode |
Light ON |
Response time |
Below 7 ms |
Light source |
Infrared emitting diode(Wave length 850 ㎜) |
Point angle |
Within ±5。 (At over 2 m sensing distance) |
Operating indicator |
Trns.:M/S display:Red LED, Power display : Green LED, Operation Display : Red LED |
Rcvr.E1 display : Red LED, E2 display : Blue, Red, LIght on stability display : |
Green LED, Operation display : Red LED |
|
Ambient light |
Sun light : 10,000 lx |
Ambient temperature |
-10 ~ +55 °C (No freezing) |
Ambient humidity |
35 ~ 85 % RH |
Vibration |
0 - 55Hz(Cycle for 1 min.) Double amplitude width 1.5 mm, each X.Y.Z direction for 2 hr. |
Case protection |
IP40(IEC) |
Dielectric strength |
1000 V a.c for 1 min. between current part and case |
Material |
Case : ABS, Window : Acryl |
Connection |
Flying lead 5P,Ø4.3 length 3 m |
Weight |
Each Max. 160 g |
Each Max. 180 g |
Each Max. 200 g |
Each Max. 220 g |
Each Max. 240 g |
Protection circuit |
Auto sensitivity compensation, Mutual interference prevention in parallel installation (M/S mode), |
Reverse polarity protection, Overcurrent protection |
|
