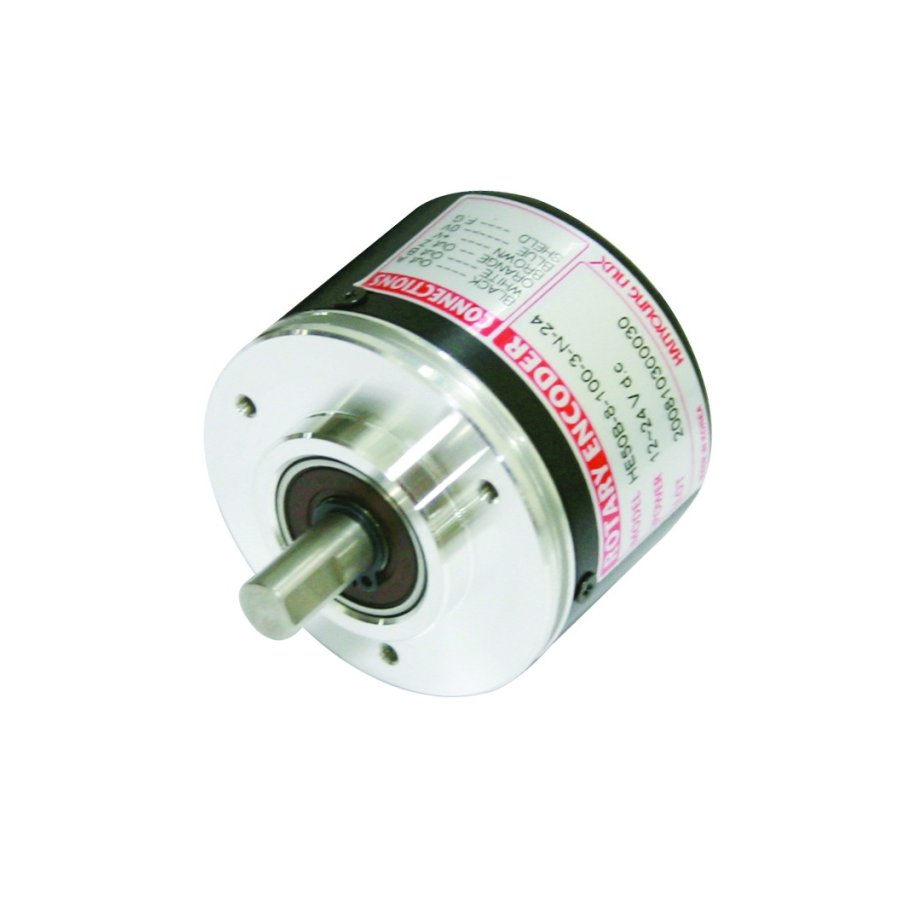

HE50B810243T24 Encoder diam. Ext. 50mm Flecha 8mm salida A,B,Z Push Pull de 12 - 24vcd 1024ppr

Referencia HE50B810243T24

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

HE50B810243T24 Encoder diam. Ext. 50mm Flecha 8mm salida A,B,Z Push Pull de 12 - 24vcd 1024ppr

Model		Code					Information
HE	-						Shaft rotary encoder (Incremental)
Dimension	40B	6					Outer diameter : Ø 40 ㎜ axis : Ø 6 ㎜
	40B	8					Outer diameter : Ø 40 ㎜ axis : Ø 8 ㎜ optional : (Option)
	50B	8					Outer diameter : Ø 50 ㎜ axis : Ø 8 ㎜
Number of pulse			*				Ø6 (External Dia Ø40), Ø8 (External Dia Ø50)
Output signal				2			A , B phase
				3			A , B , Z phase
				3C			A , B , /Z phase
				4			A , B , /A , /B phase
				6			A , B , Z , /A , /B , /Z phase
Output circuit					N	12	NPN voltage output (5 - 12 V DC)
					N	24	NPN voltage output (12 - 24 V DC)
					O	12	NPN open collector output (5 - 12 V DC)
					O	24	NPN open collector output (12 - 24 V DC)
					T	12	Totem pole output (5 - 12 V DC)
					T	24	Totem pole output (12 - 24 V DC)
					L	5	Line Driver output (5 V DC)
						12	Line Driver output (12 V DC)- Apply only for HE40B, HE50B
						24	Line Driver output (24 V DC)- Apply only for HE40B, HE50B
