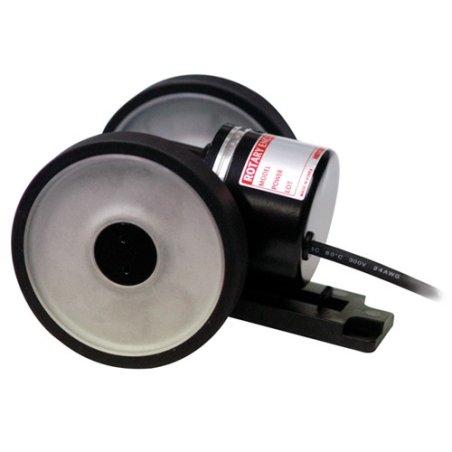

PSCYAABT24 Encoder Tipo Carretilla 1 Yarda Push Pull 12-24vcd

Referencia PSCYAABT24

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

PSCYAABT24 Encoder Tipo Carretilla 1 Yarda Push Pull 12-24vcd

Model	Code				Information
PSC-					Wheel type encoder
Min length measurement	MA				1 m	Please refer to the length measurement code chart
	MB				1 cm
	MC				1 mm
	YA				1 YARD
	YB				0.1 YARD
	YC				0.01 YARD
Output signal		AB			A, B phase output (PSC-MA, YA), Rests are A, B, Z Phase output
Output Circuit			N		NPN voltage output
			O		NPN open collector
			T		Totempole output
Power supply voltage				12	12 V DC (5 - 12 V DC)
Power supply voltage				24	24 V DC (12 - 24 V DC)
