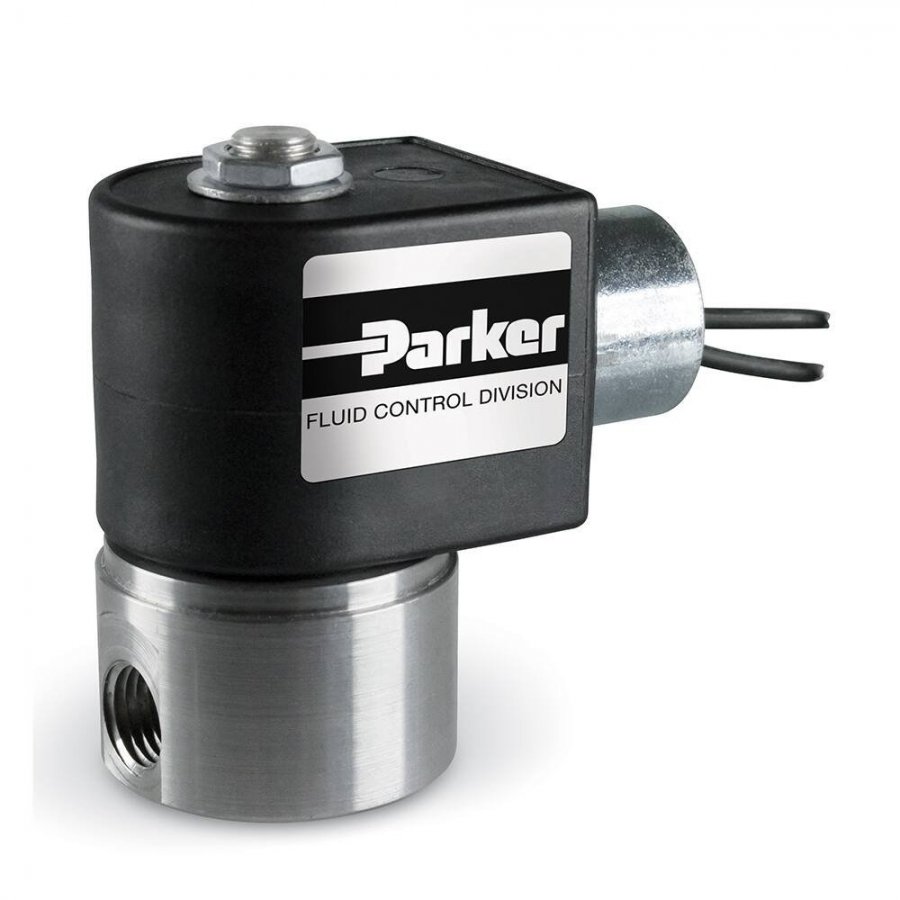

IMAGEN DE REFERENCIA

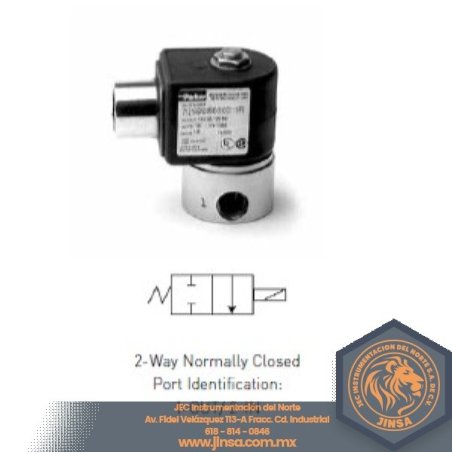

71216SN2BL00 Válvula de 2 vías normalmente cerradas de 1/4" NPT clase f

71216SN2BL00

* Bobina y/o accesorios no incluidos

Las válvulas solenoides NPT de 1/8 "normalmente cerradas de 2 vías de Parker proporcionan presiones de operación de hasta 3000 PSI y factores de flujo de hasta 0.5 CV. Ofrecen múltiples materiales del cuerpo, posiciones de montaje y opciones de bobina para todas las aplicaciones de control de flujo de uso general.


FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice
Size
in.
Flow
Factor
Cv
Operating Pressure
Differential (MOPD) PSI
Watt Max. Media Temp. °F Seal Pressure Vessel Number** Reference
Min. Air, Inert Gas Water Light
Oil
Coil Valve
1/4 1/32 0.021 0 3000 3000 3000 10 185 NYLON 71216SN2BL00 7 A60

2-Way Direct Acting and Pilot Operated High Pressure valves are generally installed where high pressure and large flow requirements dictate the use of piston valves and/or valves with more robust seals such as PTFE and Ruby discs*. Pilot Operated valves require the minimum pressure differential specified for proper valve operation.

Installation

Pilot Operated Valves should be mounted with solenoid coils vertical and upright. Direct Acting valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water, Light Oil (300 SSU) and other non-compressible media. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F standard
Class H available

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Blow molding
  • Compressors
  • Car washing equipment
  • Pumps
