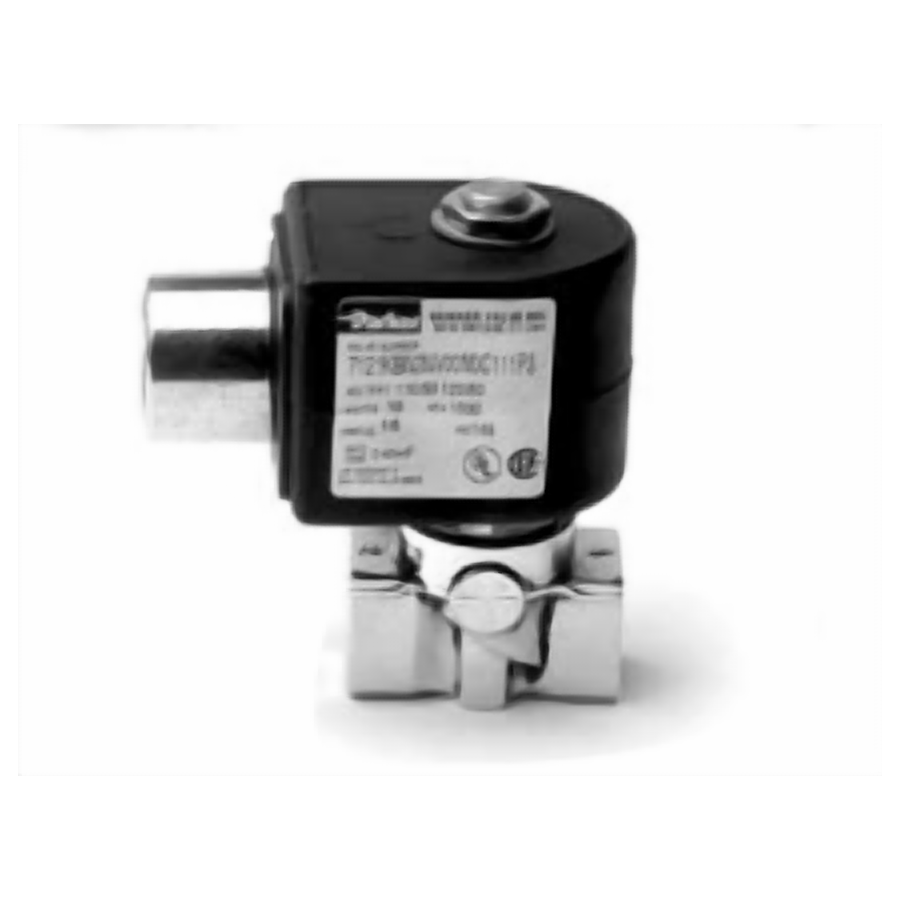

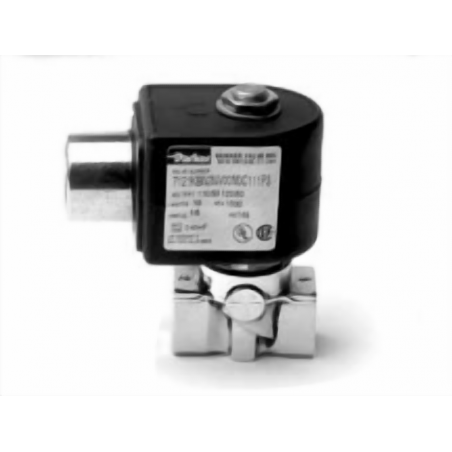

7121KBN1NF00 Válvula de 2 vías normalmente cerrado de 1/8" NPT orificio de 1/8 de latón

7121KBN1NF00

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente cerrado de 1/8" NPT  orificio de 1/8  0-205 psi  165 ss 702n 0-205 psi  165 ss 702n  a presión de latón
FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice
Size
in.
Flow
Factor
Cv
Operating Pressure
Differential (MOPD) PSI
Watt Max. Media Temp. °F Seal Pressure Vessel Number** Reference
Min. Air, Inert Gas Water Light
Oil
Coil Valve
1/8 1/8 0.31 0 365 365 365 10 165 PCTFE 7121KBN1NF00 7 A13

2-way Direct Acting valves are used in a wide variety of applications that require zero pressure differential and medium to high pressures and flow. These valves are available in a variety of elastomers as well as, brass and stainless construction.

Installation

Valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water and Light Oil (300 SSU). Additional fluids compatible with alternate materials of construction (consult factory). Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F standard
Class H available

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Instrumentation equipment
  • Analyzers and diagnostic equipment
  • Medical and dental equipment
  • Portable welding equipment
  • Spraying equipment
  • Lubrication equipment
  • Beverage dispensing & vending machines
  • Oil burners
  • Humidification and misting equipment
  • Mobile fuel shut off
  • Textile and dry cleaning equipment
  • Air horns
  • Pneumatic fan clutch
  • Irrigation equipment
