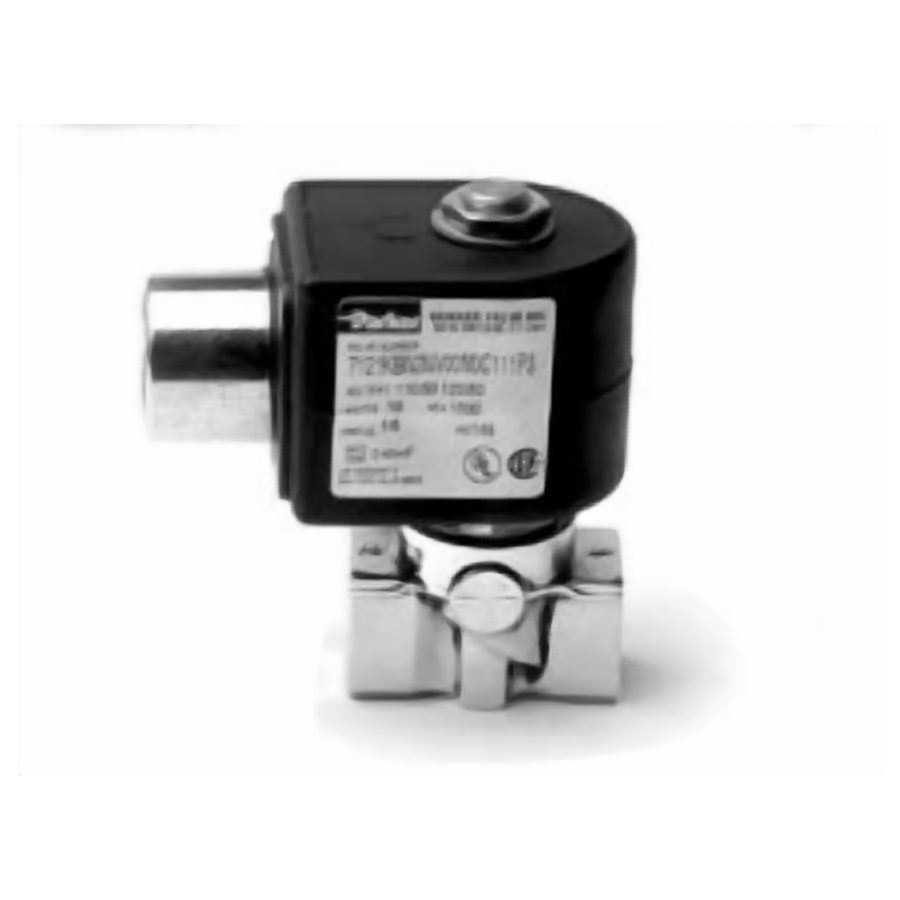

IMAGEN DE REFERENCIA

7121KBN2SE00 Válvula de 2 vías normalmente cerrado de latón de 1/4" NPT

7121KBN2SE00

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente cerrado  de latón de 1/4" NPT para agua caliente EPDM a presión de acción directa.
FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port
Size
NPT
Orifice
Size
in.
Flow
Factor
Cv
Operating
Pressure
Differential
(MOPD) PSI
Watt  Max.
Media
Temp.
°F
Seal  Pressure Vessel
Number**
Reference
Min. Hot
Water
Steam Coil Valve
1/4 13/64 0.76 0 100 - 10 210° EPDM 7121KBN2SE00 7 D21



2-Way Hot Water and Steam valves are specifically designed to withstand harsh application conditions. Many designs include integral stainless steel main and pilot orifices.

Installation

Valves should be mounted vertical and upright.

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications.

Electrical Characteristics

Standard Voltages

AC –24/60
120/60–110/50
240/60–220/50

DC –12, 24 & 120

For other voltages – consult factory

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.


Maximum Ambient Temperature

150° F

Application

  • Industrial laundry machines
  • Industrial dishwashing machines
  • Institutional cooking and food-warming equipment
  • Steam tables, steam cookers/kettles
  • Sterilizers
  • Dry cleaning equipment and steam irons
  • Hospital equipment
  • Steam Presses
  • Steam baths
  • Autoclaves
