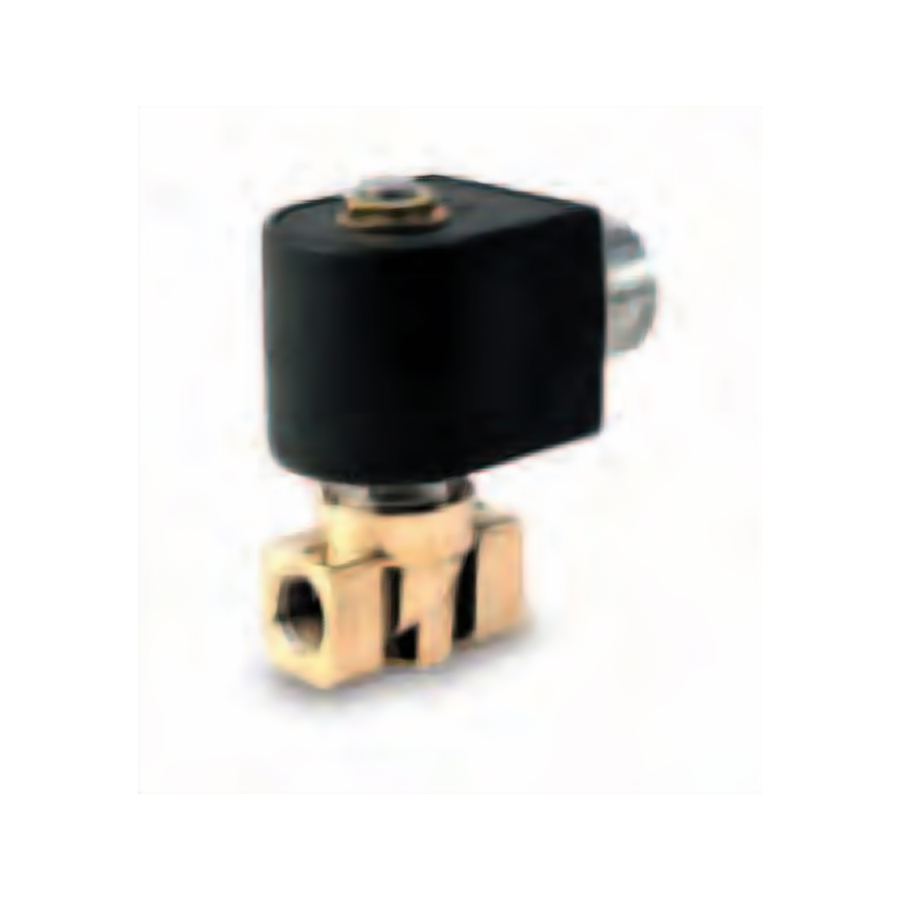

7131KBN2GV00 Válvula 3 vías normalmente cerrado de latón de 1/4" NPT orificio de 1/16

7131KBN2GV00

* Bobina y/o accesorios no incluidos

Valvula 1/4 3v 1/16 nc orif 1/16  0-215 psi 185
FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice Size in. Flow Factor Cv Operating Pressure Differential (MOPD) PSI Watt Max. Media Temp. °F Seal Pressure Vessel Number** Reference
In Exh. In Exh. Min. Air, Inert Gas Water Light Oil Coil Valve
1/4 1/16 1/16 0.11 0.11 0 215 215 215 10 185 FKM 7131KBN2GV00 7 B12

3-way Direct Acting valves are suitable for low to medium pressure applications that do not require a minimum operating pressure differential. Available in normally open, normally closed and universal operation.

Installation

Valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water and Light Oil (300 SSU) and additional fluids compatible with materials of construction. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F Standard, Class H Available
Class B Coils (Std. on A-Series Valves)

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

167°F

Applications

  • Single acting spring return cylinder control
  • Selection or diversion of process media
  • HVAC damper control
  • Instrumentation
  • Pneumatic positioning
  • Automatic dispensing equipment
  • Gas sampling
  • Small compressors
  • Water treatment
  • Air dryers
