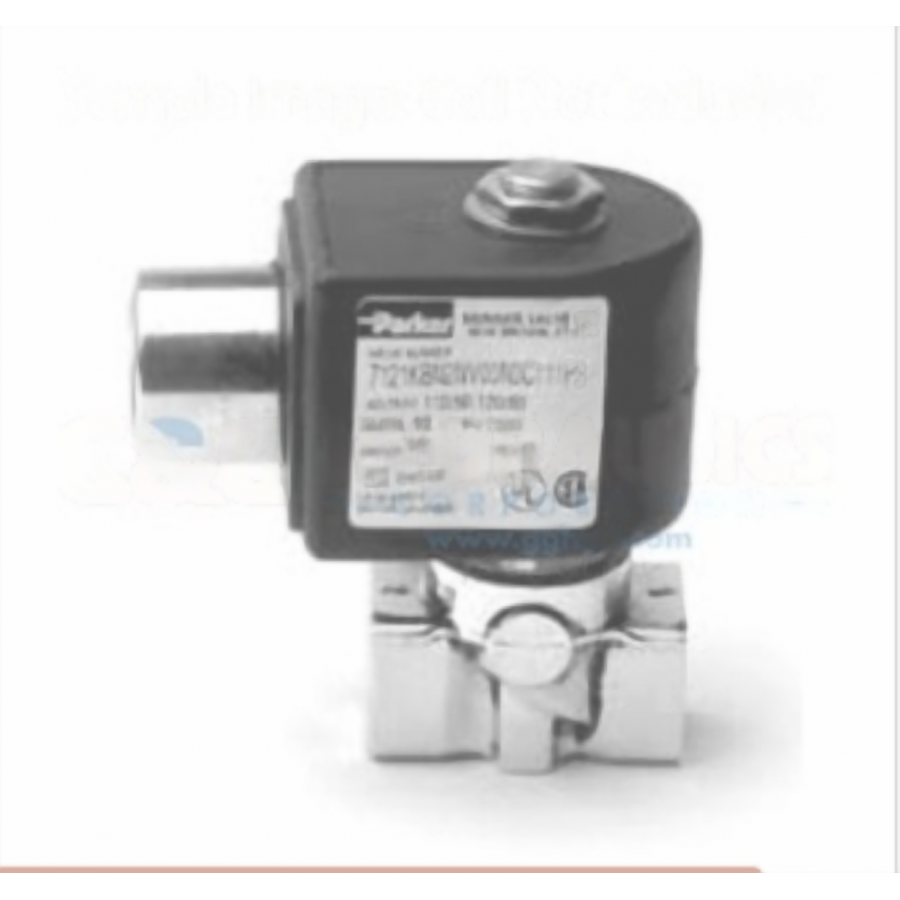

3-way Direct Acting valves are suitable for low to medium pressure applications that do not require a minimum operating pressure differential. Available in normally open, normally closed and universal operation.

Installation

Valves can be mounted in any position. The preferred orientation is with the coil
vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water, Light Oil (300 SSU) and additional fluids compatible with materials of construction, as listed in the product specifications charts. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F Standard, Class H Available

Class B Coils (Std. on A-Series Valves)

Agency Approvals

Standard valves with NEMA 4X orexplosion proof solenoid enclosuresare UL Listed and CSA Certified.For additional details, consult factory.

Maximum Ambient Temperature

150°

Applications

• Pilot valve actuation of larger control valves
• Oil and gas includingoff-shore installations
• Single acting spring returncylinder control
• Compressor unloaders
• Turbines
• Machining equipment
• High pressure compressors
