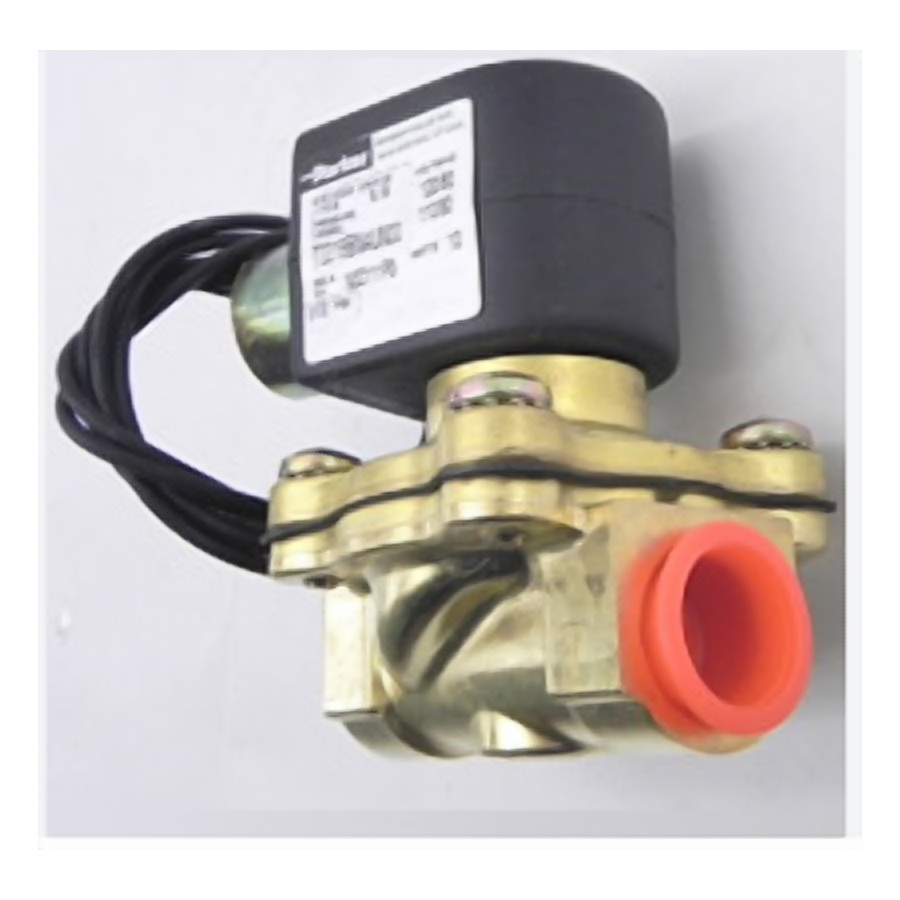

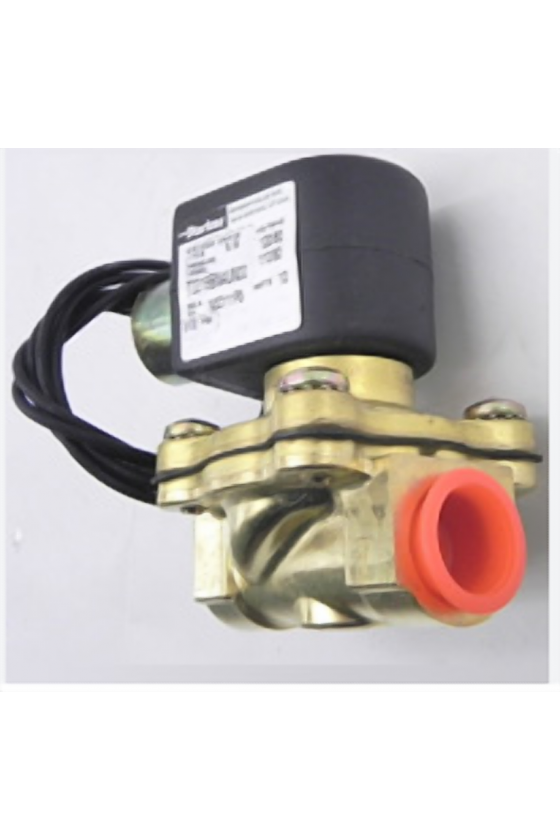

IMAGEN DE REFERENCIA

72218BN5VE00 706N6 Válvula de 2 vías normalmente cerrado de latón NPT de 3/4" orificio 3/4

72218BN5VE00

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente cerrado de latón NPT de 3/4" orificio 3/4   0-100L  a presión de elevación directa.

FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice
Size
in.
Flow
Factor
Cv
Operating Pressure
Differential (MOPD) PSI
Watt Max. Media Temp. °F Seal*** Pressure Vessel Number** Reference
Min. Hot
Water
Steam Coil Valve
3/4 3/4 5.00 0 40 - 22 210 EPDM 72218BN5VE00 8 D14

2-Way Hot Water and Steam valves are specifically designed to withstand harsh application conditions. Many designs include integral stainless steel main and pilot orifices.

Installation

Valves should be mounted vertical and upright.

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications.

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard valves with NEMA 4X or explosion psolenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150° F

Applications

  • Industrial laundry machines
  • Industrial dish washing machines
  • Institutional cooking and food warming equipment
  • Steam tables, steam cookers/kettles
  • Sterilizers
  • Dry cleaning equipment and steam irons
  • Hospital equipment
  • Steam presses
  • Steam baths
  • Autoclaves
