IMAGEN DE REFERENCIA

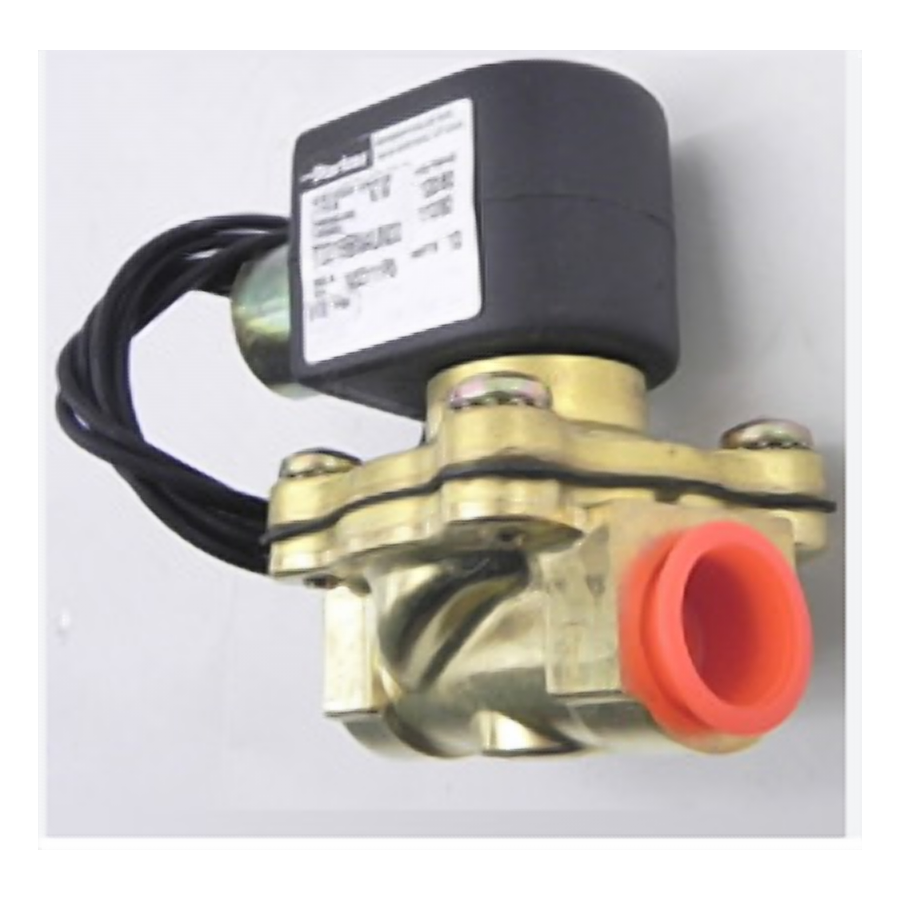

72218RN5VV00 718N3 Válvula de 2 vías normalmente cerrado 3/4" NPT de acero inoxidable orificio 3/4

72218RN5VV00

* Bobina y/o accesorios no incluidos

718N3 Válvula de 2 vías normalmente cerrado 3/4"  NPT de acero inoxidable orificio 3/4 0-100 psi viton  85 grados clase c a presión de elevación directa
FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice Size in. Flow
Factor
Cv
Operating Pressure Differential (MOPD) PSI Light Oil Watt Max. Media Temp. °F Seal Pressure Vessel Number** Reference
Min. Air, Inert Gas Water Coil Valve
3/4 3/4 5 0 100 100 100 10 185 FKM 72218RN5VV00* 7 A36

2-Way Direct Lift, Pilot & Remote Operated valves are designed for higher flow and medium to high pressure applications. Pilot operated valves require the minimum pressure differential specified for proper valve operation.

Installation

Valves should be mounted with solenoid coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water and Light Oil (300 SSU). Additional fluids compatible with alternate materials of construction (consult factory). Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F standard
Class H available

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Irrigation systems
  • Fire suppression equipment
  • Molding equipment
  • Cooling of machine tools
  • Sterilizers
  • Car wash
  • Water treatment and purification
  • Air compressors and dryers
  • Floor cleaning equipment
  • Hospital equipment
  • Automated systems
  • Food processing
