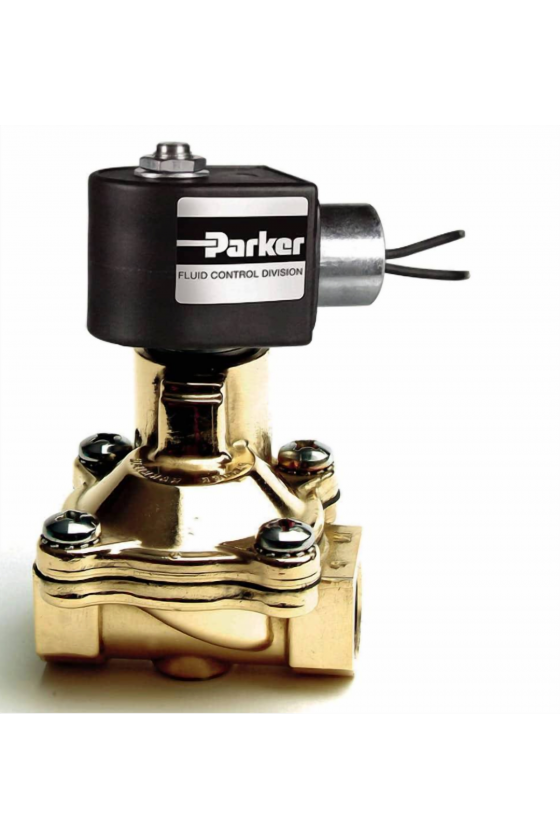

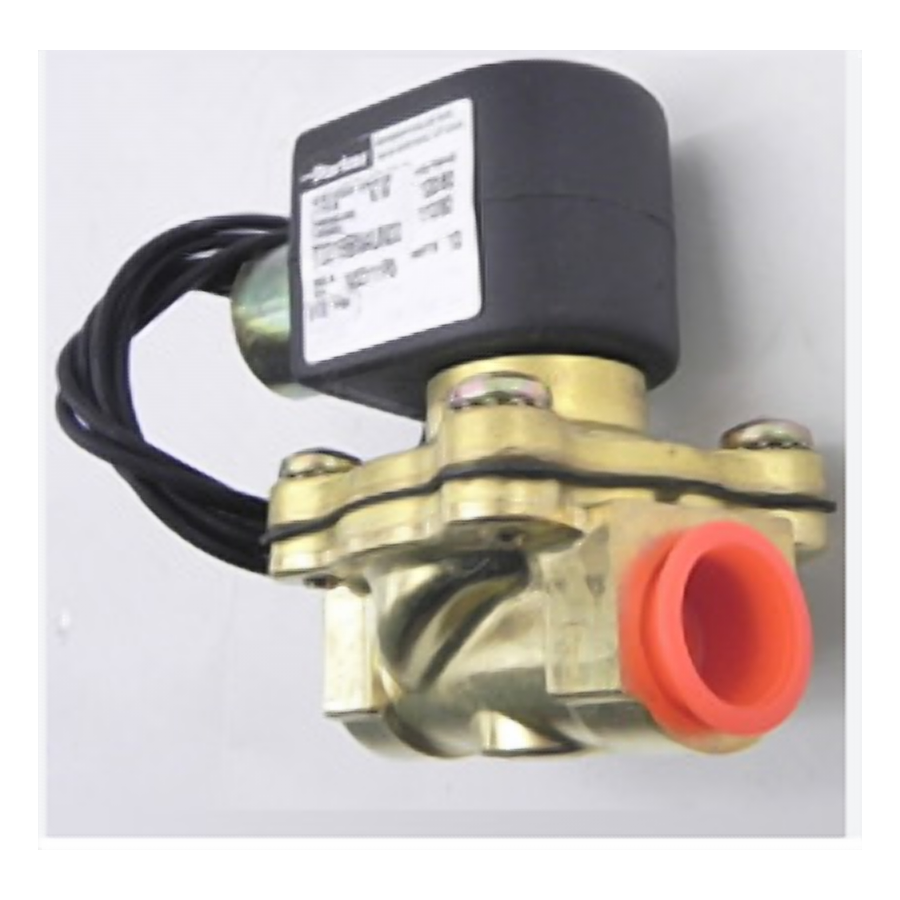

7221GBN51E00 Válvula de 2 vías normalmente cerrado de 3/4" NPT de latón orificio 19/32

7221GBN51E00

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente cerrado de 3/4" NPT  de latón orificio 19/32   0-100 LBSa presión de elevación directa.

FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice Size in. Flow Factor Cv Operating Pressure Differential (MOPD) PSI Watt Max. Media Temp. °F Seal*** Pressure Vessel Number** Reference
Min. Hot Water Steam Coil Valve
1/2 19/32 5.50 0 150 - 10 210 EPDM 7221GBN51E00 7 D23

2-Way Direct Lift, Pilot & Remote Operated valves are designed for higher flow and medium to high pressure applications. Pilot operated valves require the minimum pressure differential specified for proper valve operation.

Installation

Valves should be mounted with solenoid coil vertical and upright.

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard valves with NEMA 4X orexplosion proof solenoid enclosuresare UL Listed and CSA Certified.For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Industrial laundry machines
  • Industrial dish washing machines
  • Institutional cooking and food warming equipment
  • Steam tables, steam cookers/kettles
  • Sterilizers
  • Dry cleaning equipment and steam irons
  • Hospital equipment
  • Steam presses
  • Steam baths
  • Autoclaves
