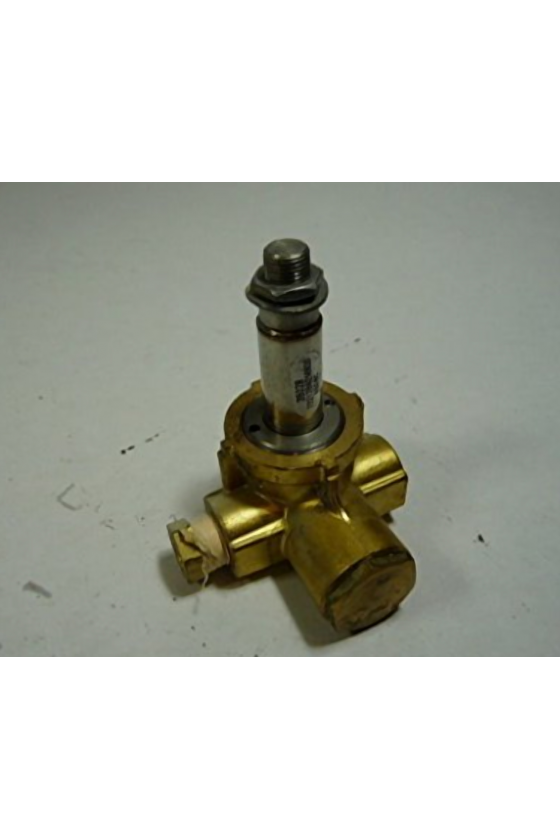

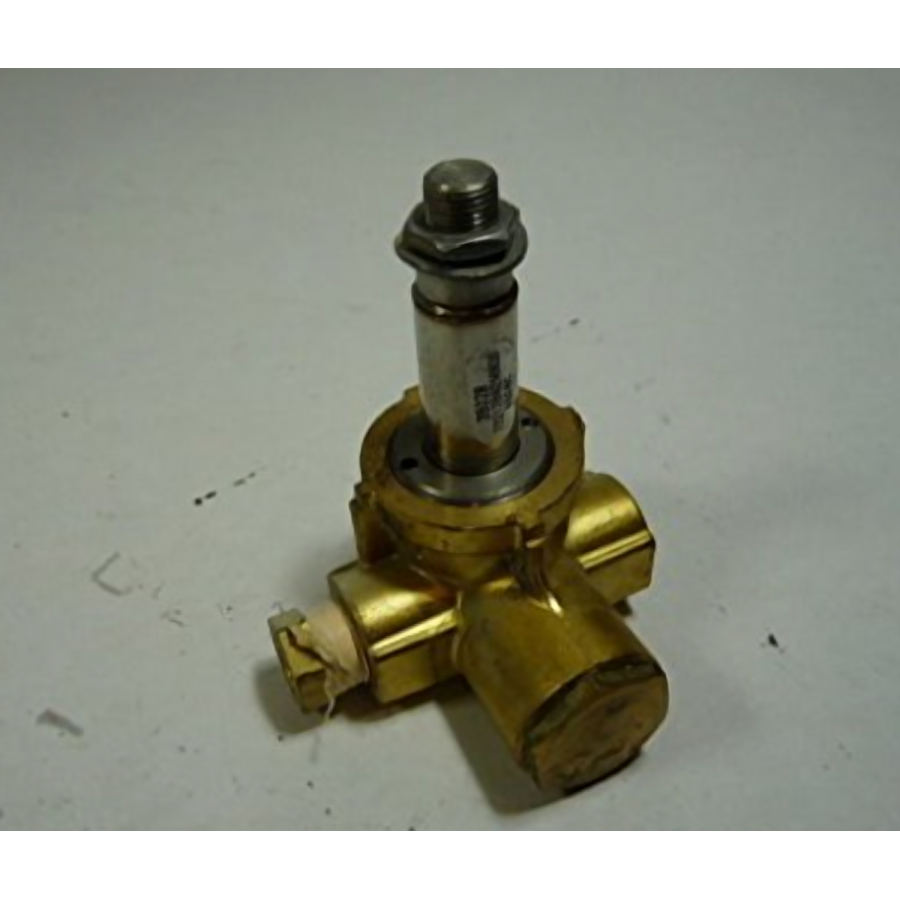

73212BN4TN00 Válvula de 2 vías normalmente cerrado NPT de 1/2" de latón1/2 orif 1/2

Referencia 73212BN4TN00

* Bobina y/o accesorios no incluidos

Valvula nc 1/2 orif 1/2 5-300 psi 185 grad f u general 73212BN4TN00 Válvula de 2 vías normalmente cerrado NPT de 1/2" de latón1/2 orif 1/2 5-300 psi 185 grados clase f para usos generales a presión con suministro de piloto interno operado por piloto.

FICHA TECNICA

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Port Size NPT

Orifice
Size
in.

Flow
Factor
Cv

Operating Pressure
Differential (MOPD) PSI

Watt

Max. Media Temp. °F

Seal

Pressure Vessel Number**

Reference

Min.

Air, Inert Gas

Water

Light
Oil

Coil

Valve

1/2

2.80

300

185

NBR

73212BN4TN00

A32

2-Way Direct Lift, Pilot & Remote Operated valves are designed for higher flow and medium to high pressure applications. Pilot operated valves require the minimum pressure differential specified for proper valve operation.

Installation

Valves should be mounted with solenoid coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water and Light Oil (300 SSU). Additional fluids compatible with alternate materials of construction (consult factory). Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F standard
Class H available

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications
