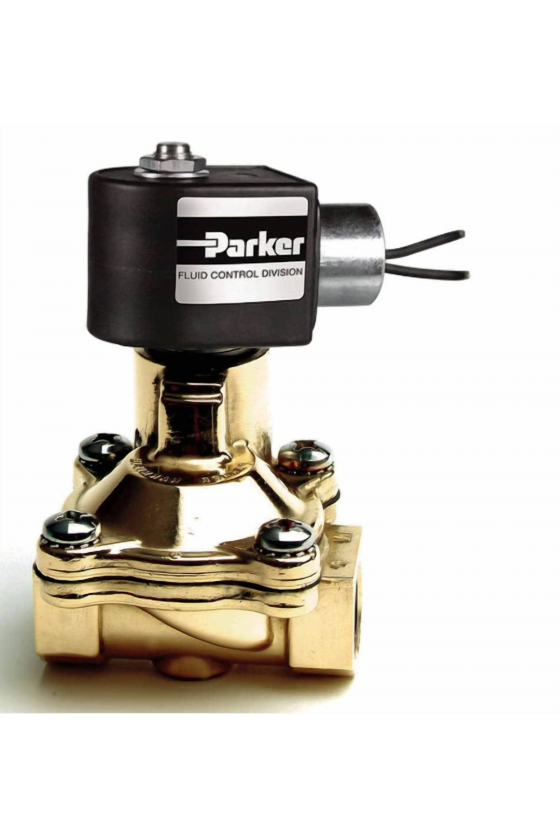

IMAGEN DE REFERENCIA

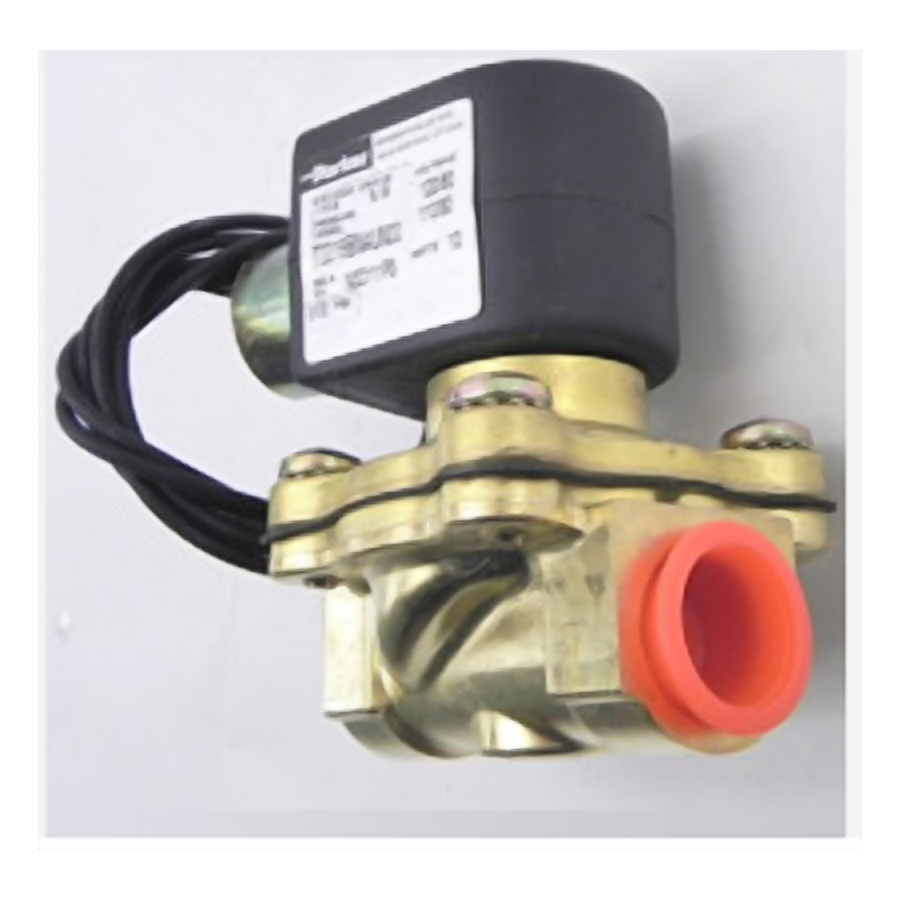

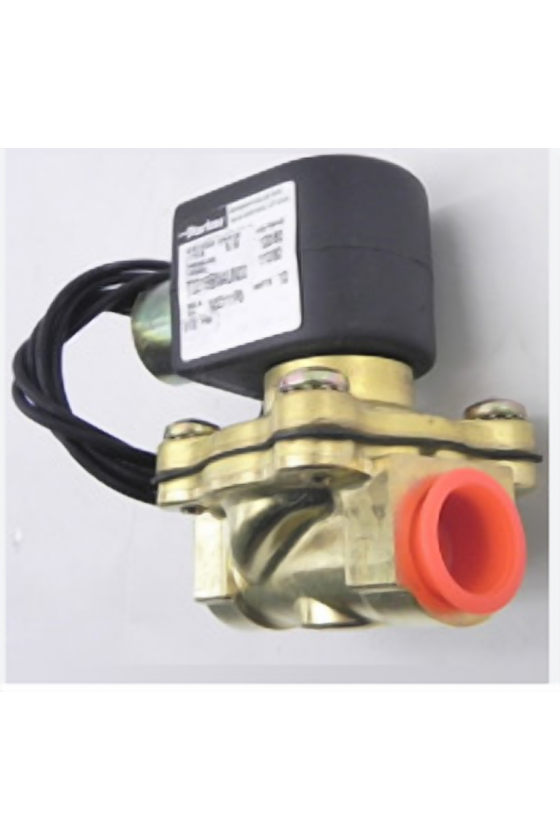

73218BN4UE00 Válvula de 2 vías normalmente cerrado de latón de 1/2" NPT con orificio de 5/8

73218BN4UE00

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente cerrado de latón de 1/2"  NPT con orificio de 5/8    5-150psi  210 grados clase  f  a presión con suministro de piloto interno operado por piloto.

FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!



Port Size NPT Orifice
Size
in.
Flow
Factor
Cv
Operating Pressure
Differential (MOPD) PSI
Watt Max. Media Temp. °F Seal*** Pressure Vessel Number** Reference
Min. Hot
Water
Steam Coil Valve
1/2 5/8 4 5 150 - 10 210 EPDM 73218BN4UE00 7 D20



2-Way Hot Water and Steam Valve are specifically designed to withstand harsh application conditions. Many designs include integral stainless steel main and pilot
orifices.

Installation

Valve should be mounted with solenoid coil vertical and upright

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Coil Classification:
Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard Valve with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Irrigation systems
  • Fire suppression equipment
  • Molding equipment
  • Cooling of machine tools
  • Sterilizers
  • Car wash
  • Water treatment and purification
  • Air compressors and dryers
  • Floor cleaning equipment
  • Hospital equipment
  • Automated systems
  • Food processing
