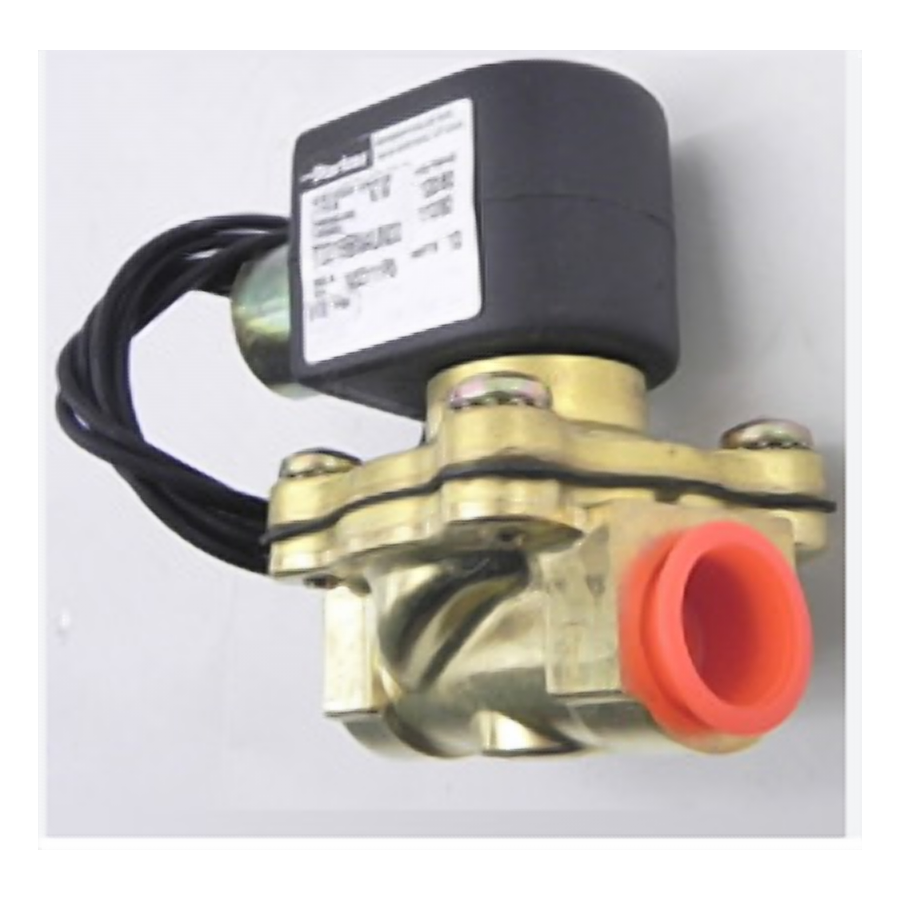

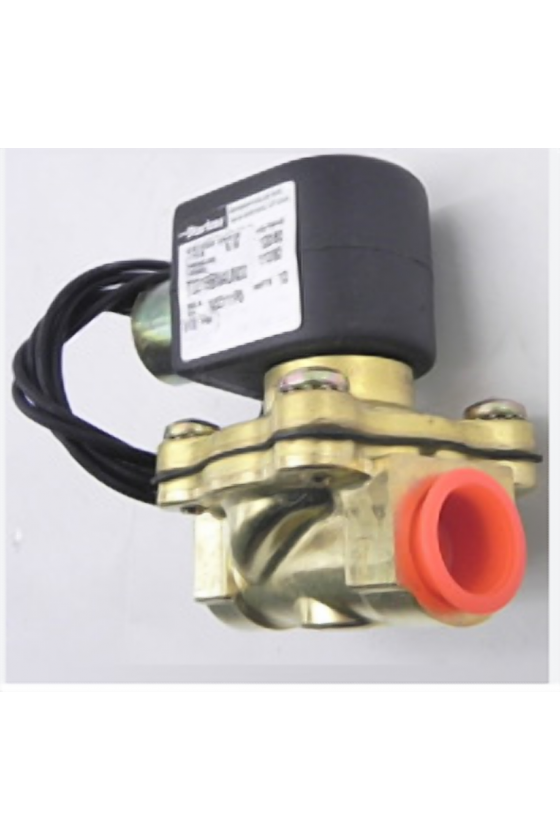

2-Way Hot Water and Steam Valve are specifically designed to withstand harsh application conditions. Many designs include integral stainless steel main and pilot orifices.

Installation

Valve should be mounted with solenoid coil vertical and upright

Compatible Fluids

Lubricated Air, Inert Gases, Water and Light Oil (300 SSU). Additional fluids compatible with alternate materials of construction (consult factory). Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard Valve with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

• Industrial laundry machines
• Industrial dishwashing machines
• Institutional cooking and food-warming equipment
• Steam tables, steam cookers/kettles
• Sterilizers
• Dry cleaning equipment and steam irons
• Hospital equipment
• Steam Presses
• Steam baths
• Autoclaves
