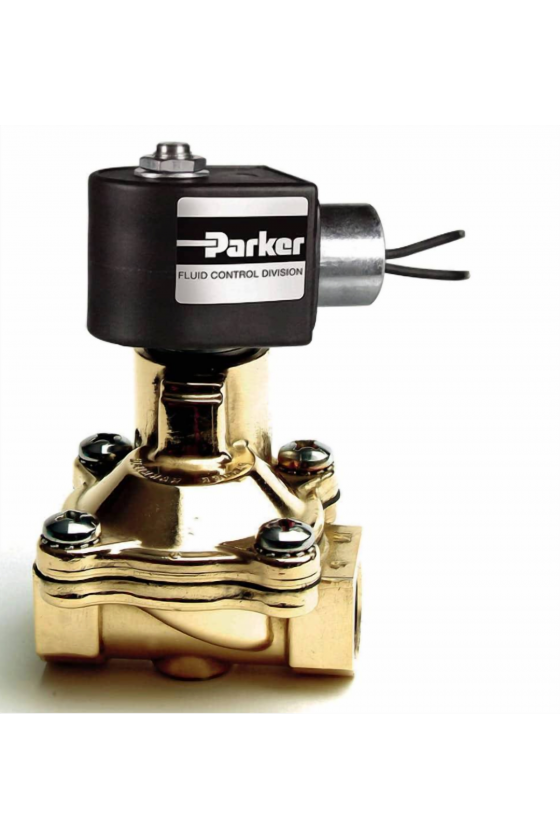

IMAGEN DE REFERENCIA

73218BN5VTS0 Válvula de 2 vías normalmente cerrado de latón NPT de 3/4" con orificio de 5/8

73218BN5VTS0

* Bobina y/o accesorios no incluidos

 Válvula de 2 vías normalmente cerrado de latón NPT de 3/4" con orificio de 5/8    3-125psi 353 180 grados clase f a presión con suministro de piloto interno operado por piloto.

FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice
Size
in.
Flow
Factor
Cv
Operating Pressure
Differential (MOPD) PSI
Watt Max. Media Temp. °F Seal*** Pressure Vessel Number** Reference
Min. Hot
Water
Steam Coil Valve
3/4 5/8 4.50 3 - 125 10 353 PTFE 73218BN5VTS0* 7 D20



2-Way Hot Water and Steam Valve are specifically designed to withstand harsh application
conditions. Many designs include integral stainless steel main and pilot orifices.

Installation

Valve should be mounted with solenoid coil vertical and upright

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard Valve with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Industrial laundry machines
  • Industrial dishwashing machines
  • Institutional cooking and food-warming equipment
  • Steam tables, steam cookers/kettles
  • Sterilizers
  • Dry cleaning equipment and steam irons
  • Hospital equipment
  • Steam Presses
  • Steam baths
  • Autoclaves
