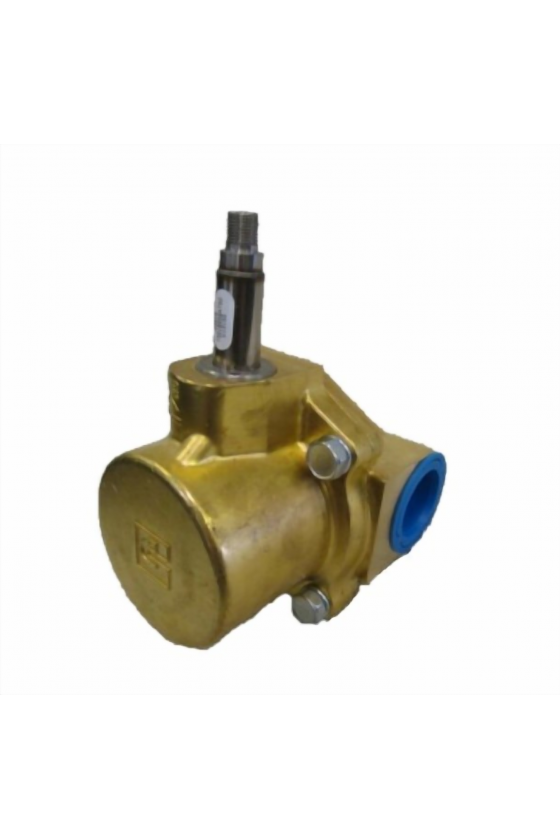

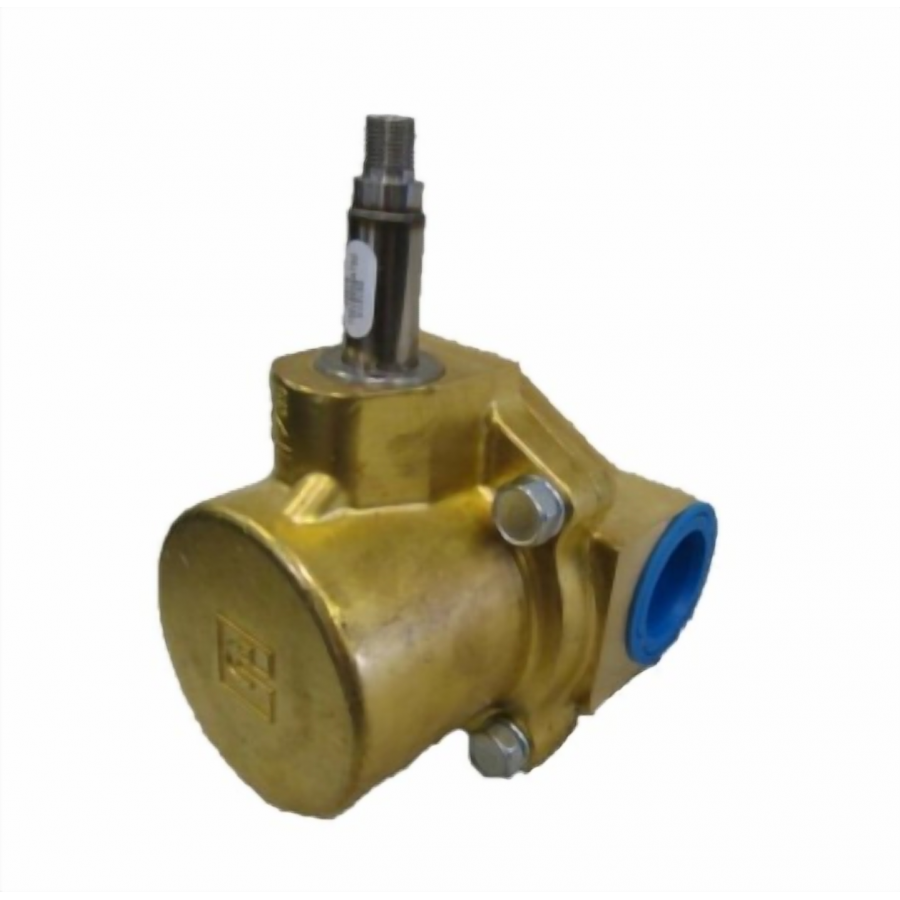

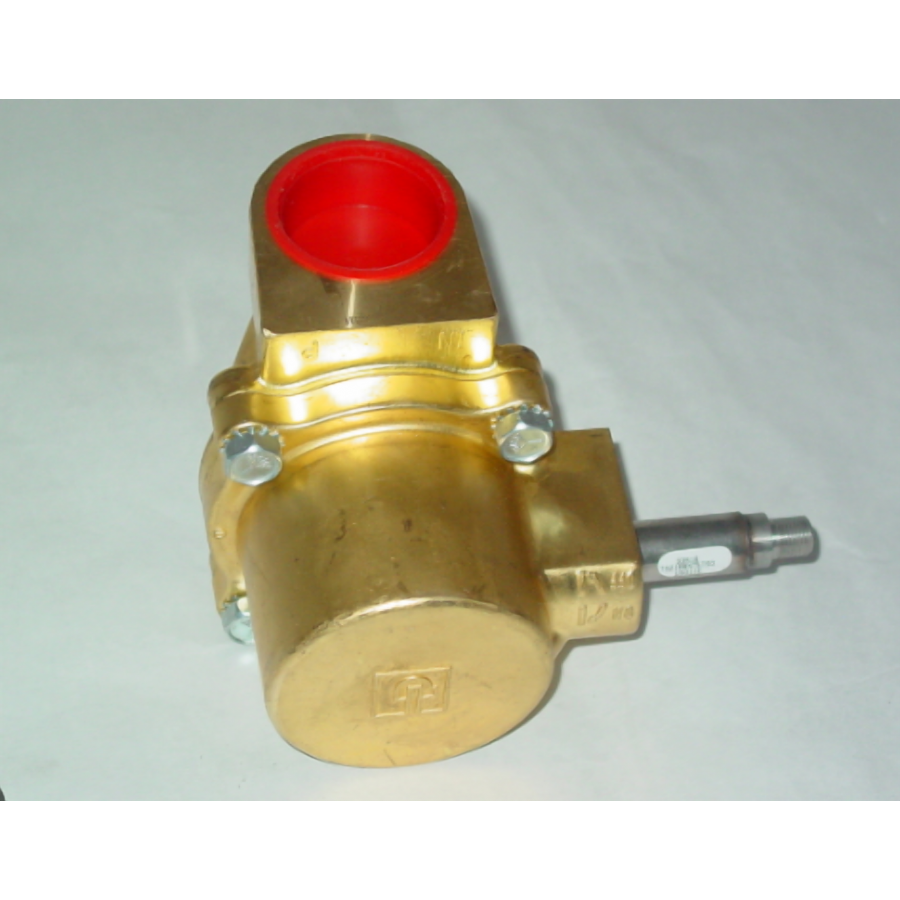

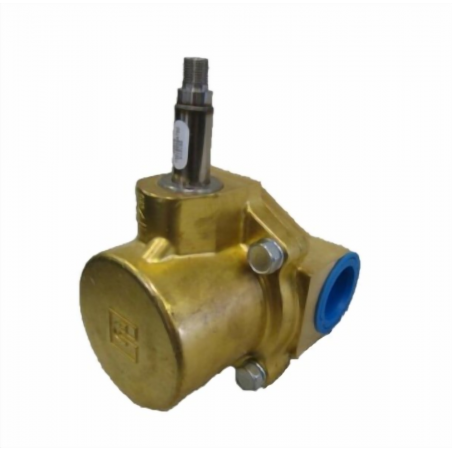

Válvula de 2 vías normalmente cerrado de de latón NPT de 1" orificio de 1 1/16 5-125psi 353 grados clase f para vapor a presión con suministro de piloto interno operado por piloto.
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Port Size NPT | Orifice Size in. |
Flow Factor Cv |
Operating Pressure Differential (MOPD) PSI |
Watt | Max. Media Temp. °F | Seal*** | Pressure Vessel Number** | Reference | |||
Min. | Hot Water |
Steam | Coil | Valve | |||||||
1 | 11/16 | 13.50 | 5 | - | 125 | 10 | 353 | PTFE | 73218BN64TS0* | 7 | D17 |
2-Way Hot Water and Steam Valve are specifically designed to withstand harsh application
conditions. Many designs include integral stainless steel main and pilot orifices.
Installation
Valve should be mounted with solenoid coil vertical and upright
Compatible Fluids
Ideal for the control of hot water and steam in a variety of applications.
Coil Classification
Class F Standard
Class H Standard for media temperatures over 297°F
Agency Approvals
Standard Valve with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.
Maximum Ambient Temperature
150°F
Applications
