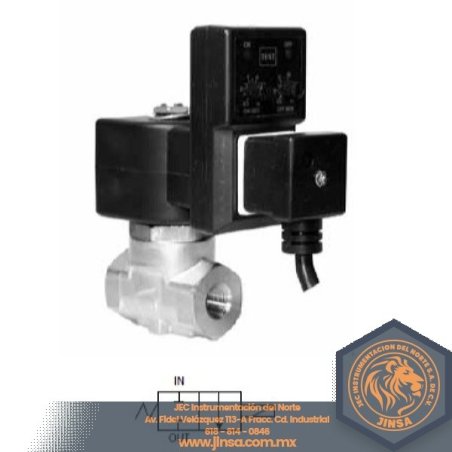

Parker Fluid Control’s Timer Drain Valves automatically eliminate condensate that has collected up in compressed airlines.

These timers can be used on a wide variety of our 2-way solenoid Normally Closed valves as well as 3-way valves for piloting our larger Angle Body control valve, using DIN 43650A / ISO 440 coils.

Timers are available to control both the duration and frequency of the valves energized period during which condensate is evacuated.

Installation

The preferred orientation is with the coil vertical and upright.

Coil Classification

Class F Standard
Class H Available

Agency Approvals

• UL listed and CSA certified
• Meets NEMA Type 4X requirements
• CE Certification

Maximum Ambient Temperature

-23º F to 122°F for Timer

Applications

• Air Compressors
• Air Drying Systems
• Refrigerated Dryer Systems

Key Features

• Selectable Timer Ranges for duration and frequency to precisely match contaminant load
  – 0.5 - 10 seconds ON
  – 0.5 - 45 minutes OFF
• Integral Strainer available to prevent contaminant from affecting valve operation
• Manual reset & test button
• LED’s to indicate operation
• Rated for Continuous Duty
