IMAGEN DE REFERENCIA

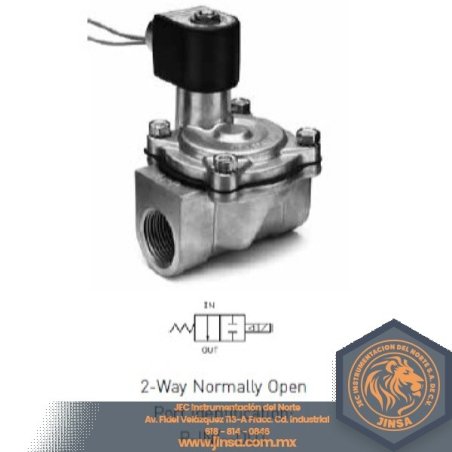

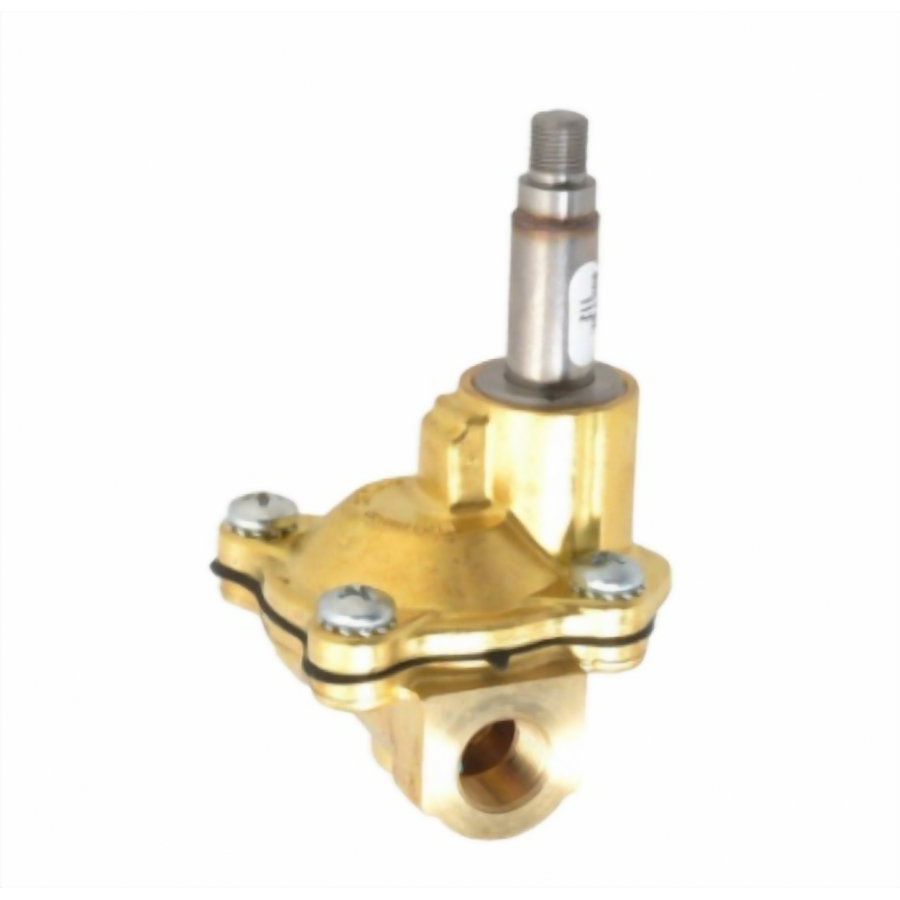

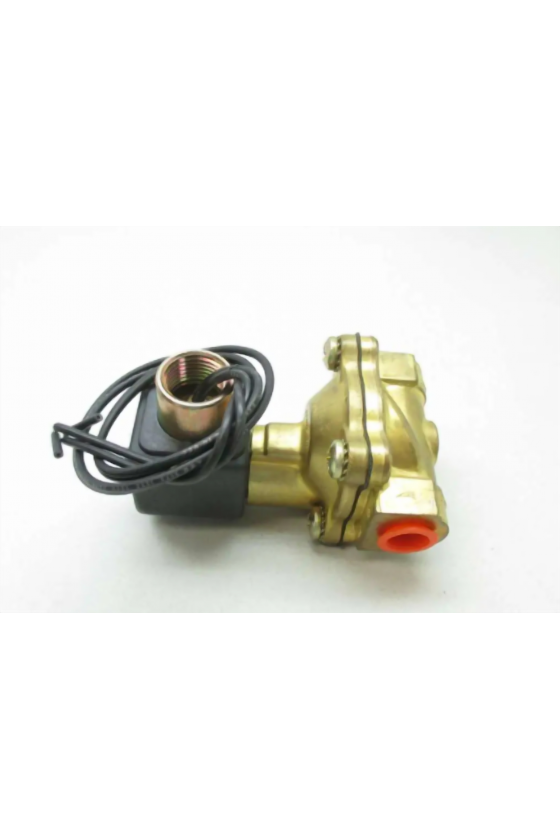

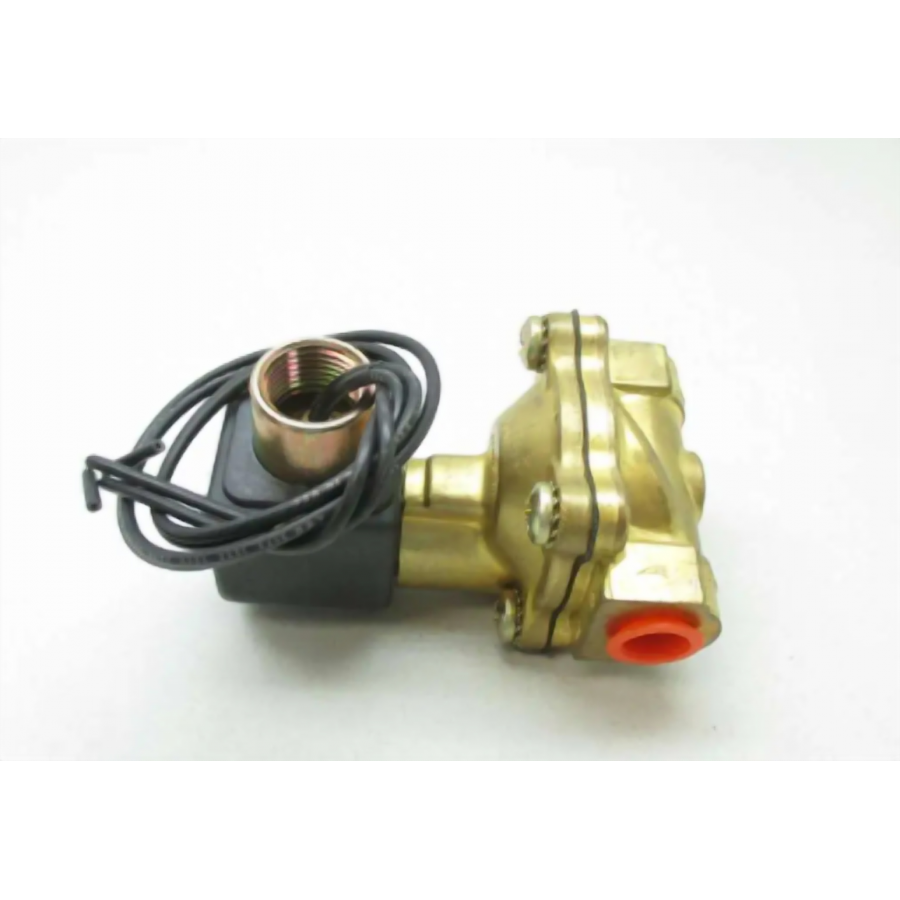

73228BN75N00 Válvula de 2 vías normalmente abierto de latón de 1 1/4"

73228BN75N00

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente abierto de latón de 1 1/4" a presión con suministro de piloto interno operado por piloto.

FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Port Size NPT Orifice Size in. Flow Factor Cv Operating Pressure Differential (MOPD) PSI Watt Max. Media Temp. °F Seal Pressure Vessel Number Reference
Min. Air, Inert Gas Water Light Oil Coil Valve
1 1/4 1 1/8 15.00 5 125 125 125 10 185 NBR 73228BN75N00 7 A41




2-Way Direct Lift, Pilot & Remote Operated valves are designed for higher flow and medium to high pressure applications. Pilot operated valves require the minimum pressure differential specified for proper valve operation.

Installation

Valves should be mounted with solenoid coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water and Light Oil (300 SSU). Additional fluids compatible with alternate materials of construction (consult factory).

Use of non-lubricated gaseous media can affect valve life.

Electrical Characteristics

Standard Voltages

AC – 24/60
120/60–110/50
240/60–220/50

DC – 12, 24 & 120
For other Voltages – Consult Factory

Coil Classification

Class F Standard
Class H available

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

  • Irrigation systems
  • Fire suppression equipment
  • Molding equipment
  • Cooling of machine tools
  • Sterilizers
  • Car wash
  • Water treatment and purification
  • Air compressors and dryers
  • Floor cleaning equipment
  • Hospital equipment
  • Automated systems
  • Food processing
