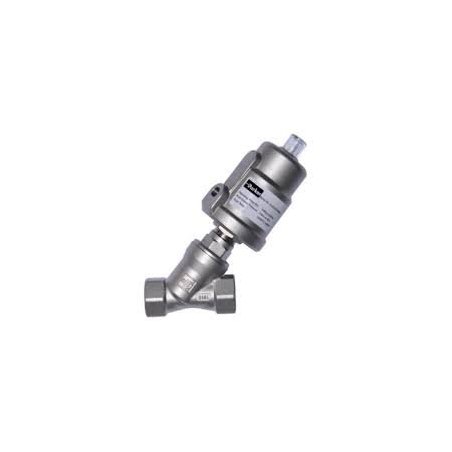

PA40SAN8S100A Válvula angular de 2 vías normalmente cerradas de 1-1/2" NPT de acero inoxidable

PA40SAN8S100A

* Bobina y/o accesorios no incluidos

Válvulas angulares Parker PA Cuerpos de acero inoxidable 304 de 1-1/2" con actuadores de aluminio, válvulas de 2 vías normalmente cerradas - Dirección del flujo DEBAJO del asiento, puertos NPT, actuador de aluminio de 100 mm.

FICHA TECNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Parker PA Angle Valves 1-1/2" 304 Stainless Steel Bodies with Aluminum Actuators, 2 Way Normally Closed Valves - Flow Direction UNDER Seat, NPT Ports, 100 mm Aluminun Actuator

Specifications:

  • Body Material 304 Stainless Steel or 316 Stainless Steel
  • Actuator Material 304 Stainless Steel, or Aluminum
  • Function 2-Way, NC, NO, NC (Anti-Water Hammer)
  • Port size from 3/8" to 2 1/2"
  • Body Port Connections: Threads NPT
  • Maximum Working Pressure 232 PSI
  • Flow factor 5.5 CV TO 81.7 CV
  • The PA Series angle body valves comply with European Pressure Equipment Directive 97/23/EC
  • Parker Angle Body Valves conform to the terms of the 94/9/CE directive specific to non electrical equipment for use within potentially explosive environments - Zone 2/22 - Protection II 3 GD T4
  • Pilot Pressure 44 PSI min to 145 PSI max according to control pressure charts
  • Fluid Temperature 14°F to 356°F
  • Ambient Temperature 14°F to 140°F
  • Seat Seal material PTFE
  • Packing Gland: PTFE and PTFE with Carbon
  • Installs in Any Position
  • Optical Position Indicator Standard on all sizes
  • Pilot Control Media Air, Neutral Gas
  • Fluids handled: Inert gases, hot water, oils, steam, aggressive and corrosive fluids
  • Weight from 1.39 - 19.03 lbs
  • Viscosity: Maxi. 600 mm2/s (600cSt, 80° E, 2700 SSU)
Accessories:
  • 3 Way Direct Acting AC & DC Pilot Control Valves available as separate components



Valve Size Port Size Port Size NPT CV Actuator Operating Pressure -Steam Operating Pressure - Air, Inert Gases  Minimum Pilot Control Pressure Range ModelNumber Net Weight

dia

mm

dia in Port bsp PSI bar PSI bar PSI bar
1-1/2" 1-1/2" 1.38 37.3 100

3.94

1/4 N/A N/A 0 - 232 0 - 16 58.0 4 PA40SAN8S100A 9.13



 Flow Diagram
