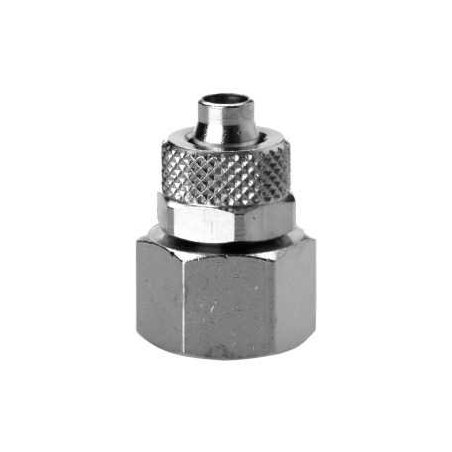

1463 10/8-1/4 RACOR RAPIDO RECTO HEMBRA

Referencia 1463 10/8-1/4

Contenido: 10 Piezas

RACOR RAPIDO RECTO HEMBRA

1463 10/8-1/4

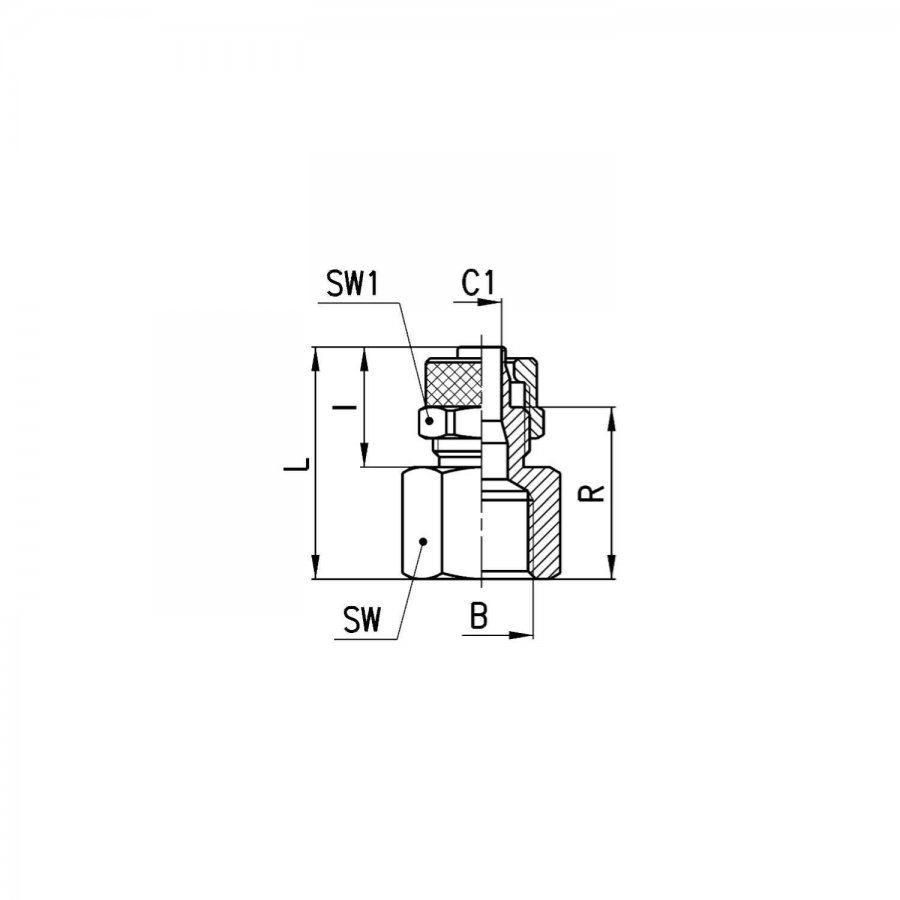

Fittings Mod. 1463

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Diameters	5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm
Threads	GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP) M5 - M6 NPT and metric (available on request)
Temperature	-20°C ÷ 80°C NOTE: for a better use of the fitting we recommend to check the tubing specifications.
Tube to connect	PA polyethylene braided PVC rilsan PU, Hytrel Polyester
Medium	compressed air low pressure fluids
Materials	body and nut: nickel-plated brass O-ring: NBR thread seals: PTFE, PA, AL
Working pressure	the nominal pressure of the fittings is always higher than the pressure of the tube
