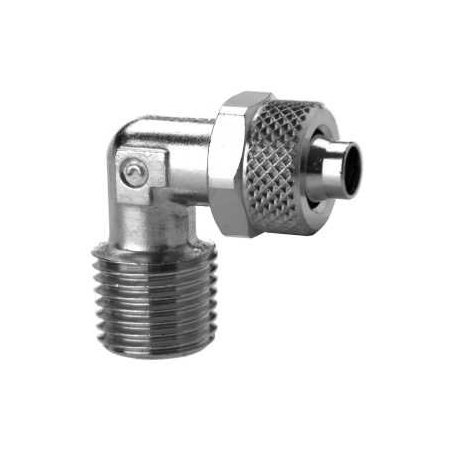

RACOR RAPIDO CODO MACHO
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

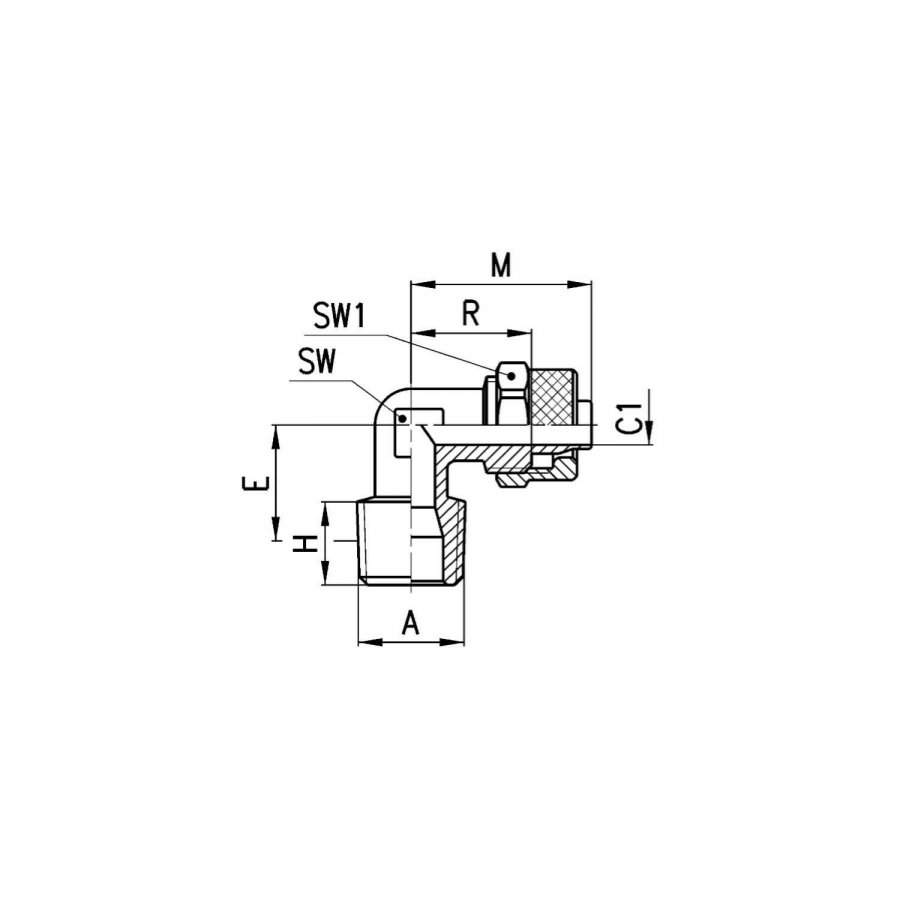

Mod. | Tube | A | C1 | E | H | M | R | SW | SW1 | Weight (g) |
1500 10/8-1/2 | 10/8 | R1/2 | 6,5 | 21 | 14 | 28,5 | 20 | 16 | 16 | 58 |
Diameters | 5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm |
Threads | GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP) M5 - M6 NPT and metric (available on request) |
Temperature | -20°C ÷ 80°C NOTE: for a better use of the fitting we recommend to check the tubing specifications. |
Tube to connect | PA polyethylene braided PVC rilsan PU, Hytrel Polyester |
Medium | compressed air low pressure fluids |
Materials | body and nut: nickel-plated brass O-ring: NBR thread seals: PTFE, PA, AL |
Working pressure | the nominal pressure of the fittings is always higher than the pressure of the tube |
