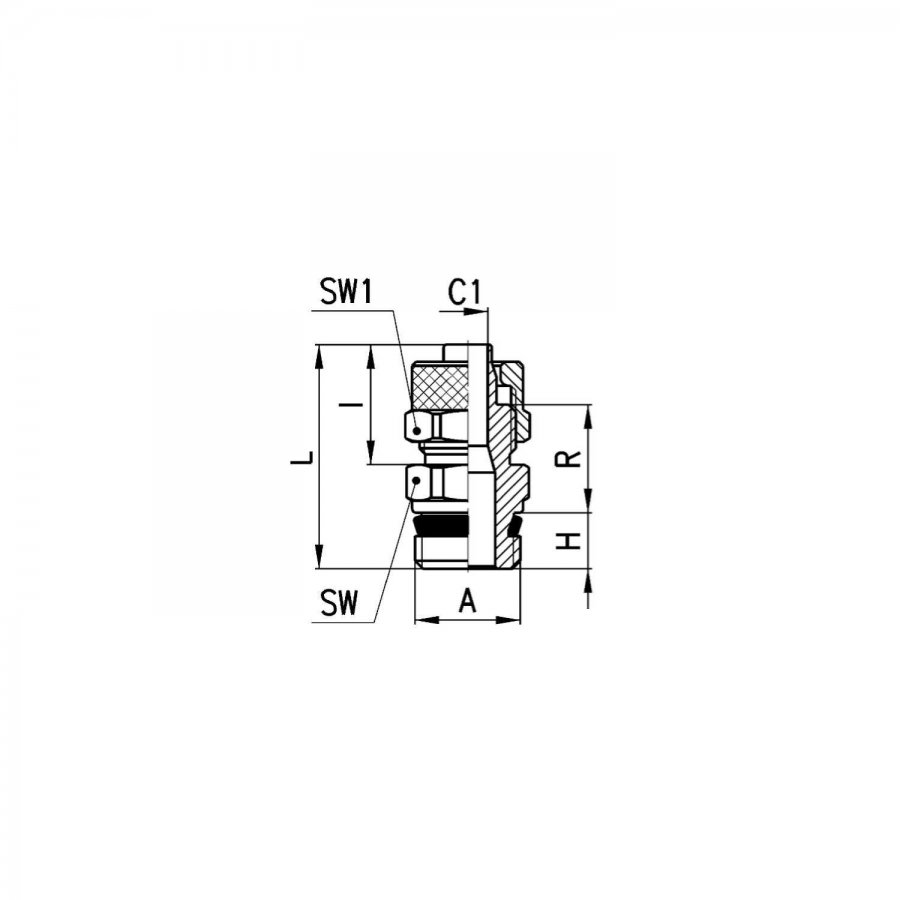

IMAGEN DE REFERENCIA

1511 12/10-1/2 RACOR RAPIDO RECTO MACHO

1511 12/10-1/2

RACOR RAPIDO RECTO MACHO

1511 12/10-1/2

Fittings Mod. 1510

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Diameters 5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm
Threads GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP) M5 - M6 NPT and metric (available on request)
Temperature -20°C ÷ 80°C NOTE: for a better use of the fitting we recommend to check the tubing specifications.
Tube to connect PA polyethylene braided PVC rilsan PU, Hytrel Polyester
Medium compressed air low pressure fluids
Materials body and nut: nickel-plated brass O-ring: NBR thread seals: PTFE, PA, AL
Working pressure the nominal pressure of the fittings is always higher than the pressure of the tube
