235-925 PEDAL NEUMATICO 3/2 N.C. CONX. M5

Referencia 235-925

PEDAL NEUMATICO 3/2 N.C. CONX. M5

235-925

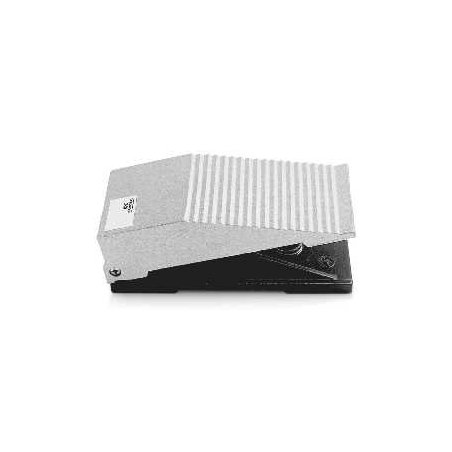

Pneumatic foot operated pedal Series 2

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction	spool-type
Valve group	5/2, 3/2 NC way/pos.
Materials	- Series 3: alluminium body - stainless steel spool - NBR seals - plastic casing - Series 2: alluminium body - OT58 poppet - NBR seals.
Ports	- Series 3: G1/4 gas - Series 2: M5; tube 4/2.
Ambient temperature	0°C ÷ 50 °C (with dry air at - 10°C)
Medium temperature	0°C ÷ 50 °C
Construction	single-pole changeover contact microswitch
Cable entry	by means of wire PG9
Protection class	IP20
Fluid	Filtered air, without lubrication.
