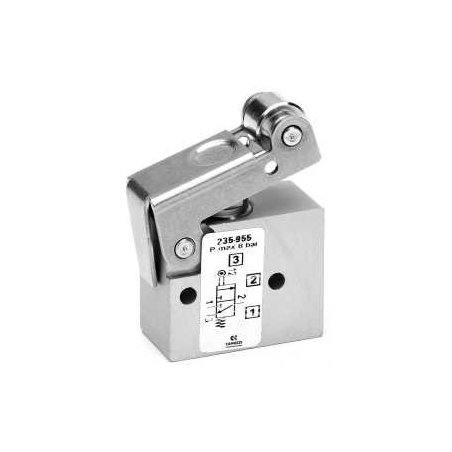

235-965 VALVULA 3/2 N.C. ACC. LEVA. Y ROD. UNI

235-965

VALVULA 3/2 N.C. ACC. LEVA. Y ROD. UNI

235-965
Minivalves, unidirectional lever

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction poppet type
Valve group 3-way/2-position
Materials aluminium body, brass plunger, NBR seals
Mounting by means of screws in the through-holes of the valve body
Ports M5, Ø4mm cartridge
Room temperature 0°C ÷ 60°C
Fluid temperature 0°C ÷ 50°C
Operating pressure 0 bar ÷ 10 bar
Fluid Filtered air, without lubrication. If lubricated air is used, it is recommended to use ISO VG32 oil. Once applied the lubrication should never be interrupted.
