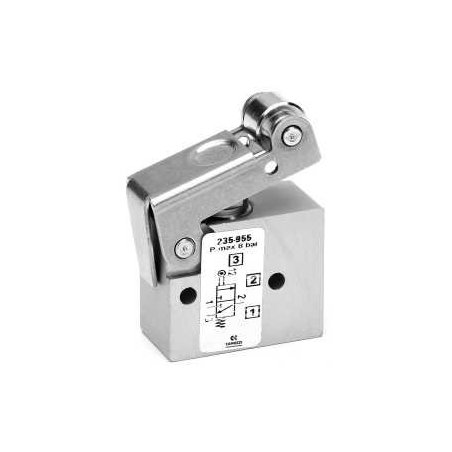

245-955 VALVULA 3/2 NA. ACC. LEVA. Y ROD. M5

245-955

VALVULA 3/2 NA. ACC. LEVA. Y ROD. M5

245-955
Minivalves with lever/roller

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction poppet type
Valve group 3-way/2-position
Materials aluminium body, brass plunger, NBR seals
Mounting by means of screws in the through-holes of the valve body
Ports M5, Ø4mm cartridge
Room temperature 0°C ÷ 60°C
Fluid temperature 0°C ÷ 50°C
Operating pressure 0 bar ÷ 10 bar
Fluid Filtered air, without lubrication. If lubricated air is used, it is recommended to use ISO VG32 oil. Once applied the lubrication should never be interrupted.
