IMAGEN DE REFERENCIA

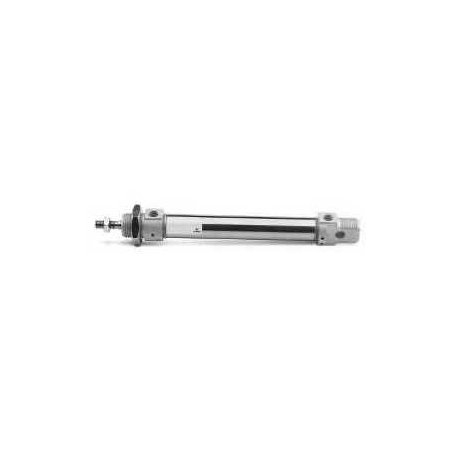

24N2A16A050 MINICILINDRO D.E. MAG. AMORT. FIJO S.24

24N2A16A050

MINICILINDRO D.E. MAG. AMORT. FIJO S.24

24N2A16A050

Series 16, 23, 24 and 25 mini-cylinders

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Type of construction crimped
Operation single-acting and double-acting
Materials anodized aluminium end-caps - stainless steel barrel and rod, aluminium piston - NBR/PU seals, other parts: see the coding example
Brackets rod end - flange - feet - trunnion
Stroke min - max Series 16 ø 8 ÷ ø 10: 10 - 250 mm / Series 16: ø 12: 10 - 300 mm / Series 24 & 25 ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm
Bores Series 16: ø 8, 10, 12 / Series 24 & 25: ø 16, 20, 25
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting)
Fluid filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
Speed 10 ÷ 1000 mm/sec (without load)
