2LB-SE ELEMENTO EMISOR P/VAL.

Referencia 2LB-SE

ELEMENTO EMISOR P/VAL.

2LB-SE

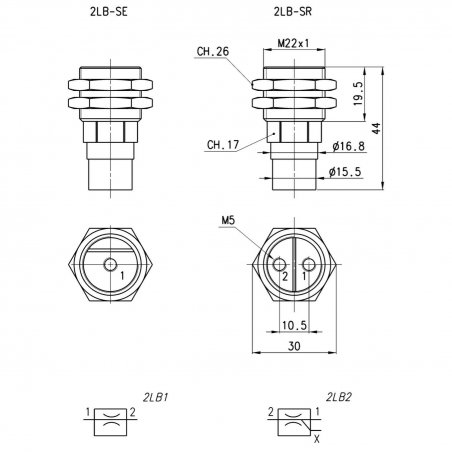

Sender and receiver sensor Series 2L - M5 ports

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction	poppet (spool memory)
Materials	aluminium body; NBR seals; OT58 brass
Valve group	automatic valves (logic units)
Ports	cartridge ø 4
Operating temperature	0°C ÷ 60°C (-20°C with dry air)
Operating pressure	2 bar ÷ 10 bar
Nominal flowrate	100 Nl/min. (6 bar ∆P = 1)
Fluid	filtered air, without lubricant. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
