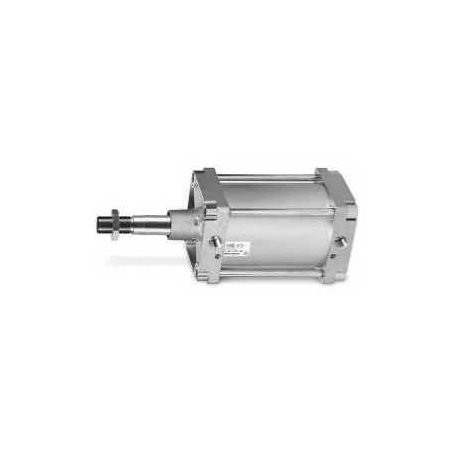

CILINDRO D.E. MAG. AMORT. SERIE 40
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Type of construction | with tie-rods |
Operation | double-acting |
Materials | Coated AL end blocks and piston (Ø250-320 mm), rolled stainless steel AISI 420B (Ø 160-200 mm) or chrome plated steel (Ø250-320 mm) piston rod, zinc-plated steel piston rod nut, anodized AL tube, zinc-plated steel tie-rods and tie-rod nuts, NBR-PU rod - piston and cushion seals brass rod scraper ring |
Mounting | with tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination |
Strokes min - max | 10 ÷ 2500 mm |
Operating temperature | 0°C ÷ 80°C (with dry air -20°C) |
Operating pressure | 1 ÷ 10 bar |
Speed | 10 ÷ 500 mm/sec (without load) |
Fluid | filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
