438-011-22 ELECTROVALVULA 3/2 N.C. BIESTABLE 1/8

Referencia 438-011-22

ELECTROVALVULA 3/2 N.C. BIESTABLE 1/8

438-011-22

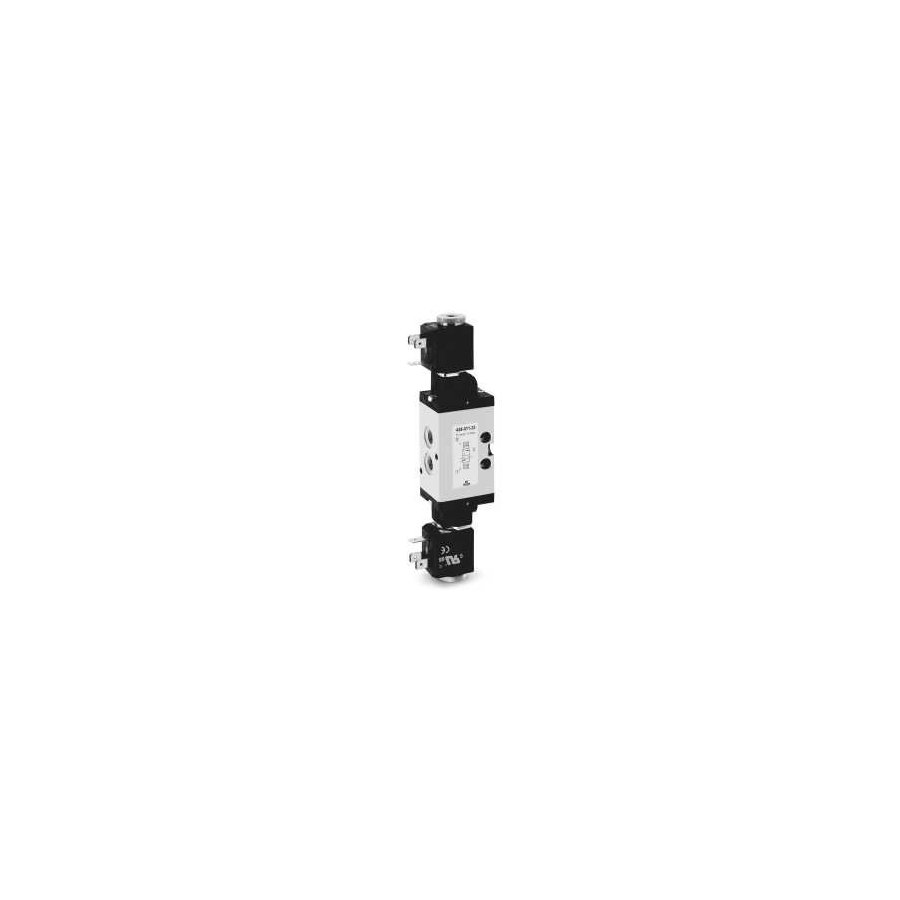

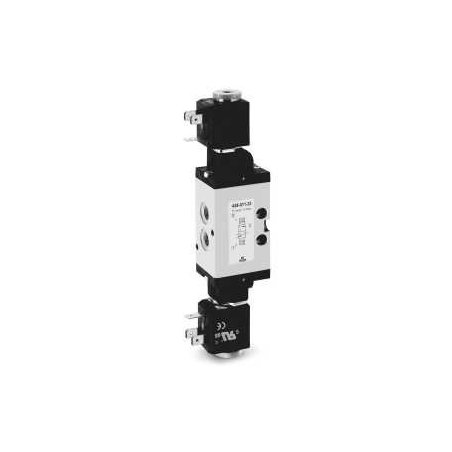

3/2-way solenoid valve G1/8, bistable - Mod. 438-011...

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction	balanced spool type
Valve functions	3/2 - 5/2 - 5/3-way CC, CO
Materials	AL body and subbases stainless steel spool technopolymer end cover NBR PU seals
Ports	G1/8 - G1/4 - G3/8 - G1/2
Installation	in any position
Operating temperature	0 ÷ 60°C (with dry air at -20°C)
Operating pressure	see table
Medium	filtered air, without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted.
