43N-PSO-40-075 FRENO HIDRULICO EMPUJE, D40, CARR-75

0 Reseñas(s)
43N-PSO-40-075

FRENO HIDRULICO EMPUJE, D=40, CARR-75

43N-PSO-40-075

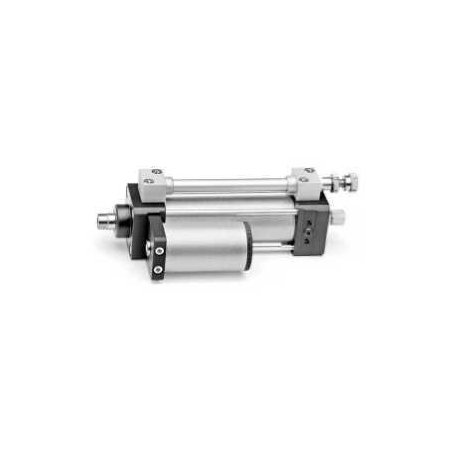

Hydrochecks Mod. 43N-PS0-40

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Series general data

Type of construction with tie-rods
Operation regulation of the hydrocheck’s rod return (thrust) regulation of the hydrocheck’s rod thrust (traction)
Controllable load max. 600 Kgf without valves, max 500 Kgf with valves (including inertia of moving masses)
Operating temperature -10°C ÷ +60°C
Media hydraulic oil, class H, ISO symbol HG 46, viscosity 4.5 E. at 40°C
Speed 70 - 10000 mm/min without valves, 0 - 6000 mm/min with valves
Standard stroke 50, 100, 150, 200 (special stroke available on request)
Special designs with STOP or SKIP and SKIP/STOP valve *
SKIP/STOP valve operating pressure 4 ÷ 8 bar
Type of mounting feet Mod. B-40 (see B-41-40 for dimensions)
