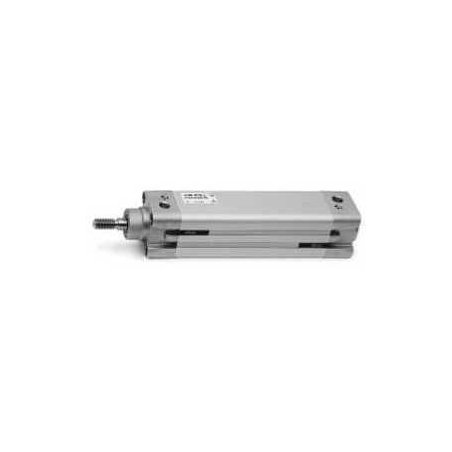

IMAGEN DE REFERENCIA

  • Sobre pedido

61M2P032A0500G CILINDRO D.E. MAG. AMORT. METAL

0 Reseñas(s)
61M2P032A0500G

CILINDRO D.E. MAG. AMORT. METAL

61M2P032A0500G

Cylinders Series 61

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Series general data

Type of construction with tie-rods (inside the profile)
Operation double-acting, single-acting, tandem. Low friction version: double-acting only.
Materials standard: AL end-blocks and piston, rolled stainless steel AISI 420B rod, anodized AL profile tube, zinc-plated steel tie-rods and tie-rod nuts, PU seals; low friction: standard materials with NBR piston seal and NBR rod seal (FKM rod seal on request) low temperature: standard materials with chrome plated stainless steel AISI 420B rod, brass rod scraper ring, stainless steel AISI 303 nuts, stainless steel AISI 420B tie-rods, PU piston seals and NBR rod seal
Type of mounting with front / rear flange, foot mounting, with front / rear / centre / swivel trunnion
Stroke min - max 10 ÷ 2500 mm
Operating temperature standard and low friction: 0°C ÷ 80°C (with dry air -20°C) low temperature (-40°C version): -40°C ÷ 60°C (with dry air -40°C) low temperature (-50°C version): -50°C ÷ 60°C (with dry air -50°C)
Operating pressure 1 ÷ 10 bar (standard and low temperature); 0,1 ÷ 10 bar (low friction)
Speed 10 ÷ 1000 mm/sec, no load (standard and low temperature); 5 ÷ 1000 mm/sec, no load (low friction)
Fluid filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
