IMAGEN DE REFERENCIA

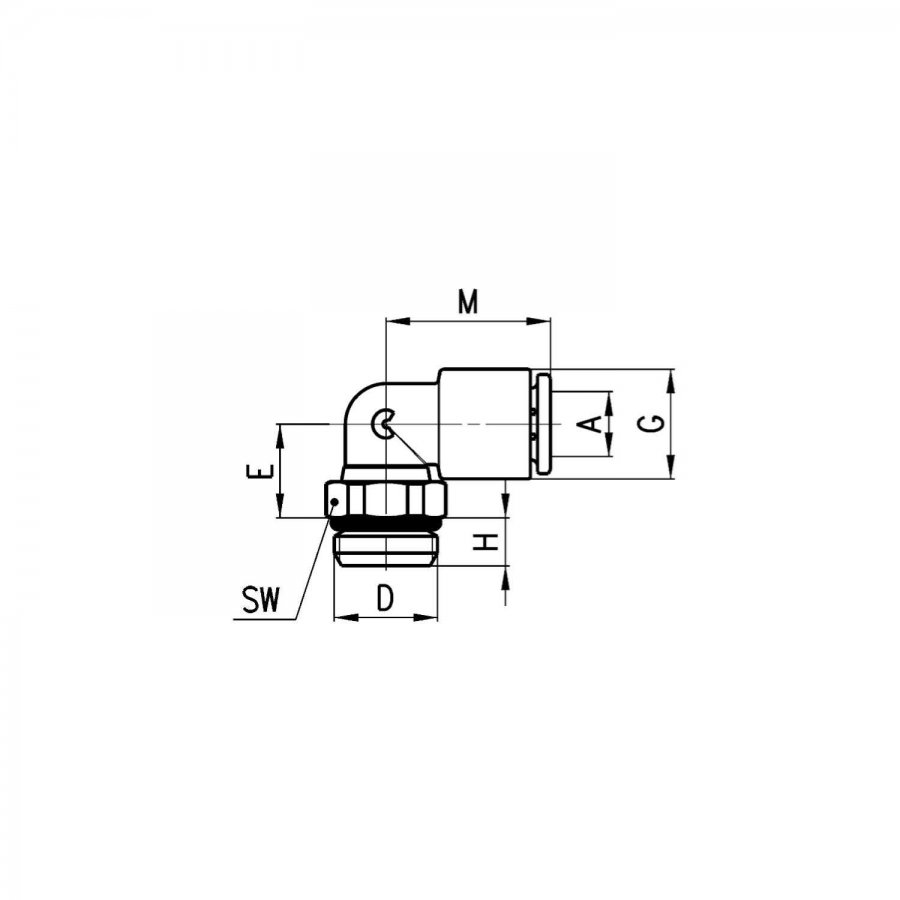

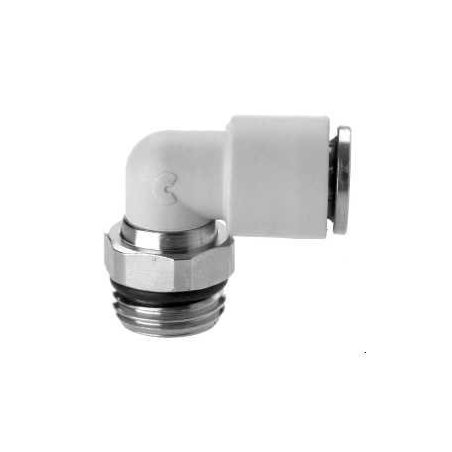

7522 16-1/2 RACOR EN TECNOPOLIMERO CODO MACHO

7522 16-1/2

RACOR EN TECNOPOLIMERO CODO MACHO

7522 16-1/2
Fittings Mod. 7522

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Diameters ø 4 - 6 - 8 - 10 - 12 - 16 mm
Threads GAS cylindrical ISO-228 (BSP)
Temperature -20° ÷ 60°C (see the technical data of tubing used)
Tube to connect Polyamide (PA) 6 - 11 - 12, Polyurethane (PU), Polyethylene (PE), hytrel Polyester
Medium compressed air (for other types of fluids, contact our engineers)
Materials - standard models: body in technopolymer; insert in brass; collet in nickel-plated brass; seals in NBR - models with self-retaining device: body in technopolymer; swivel nut, insert and collet nickel-plated brass; poppet valve in not nickel-plated brass; spring in stainless steel; seals in NBR
Working pressure - standard models: -0.9 ÷ 16 bar (see the technical data of tubing used) - models with self-retaining device: 0 ÷ 16 bar
