IMAGEN DE REFERENCIA

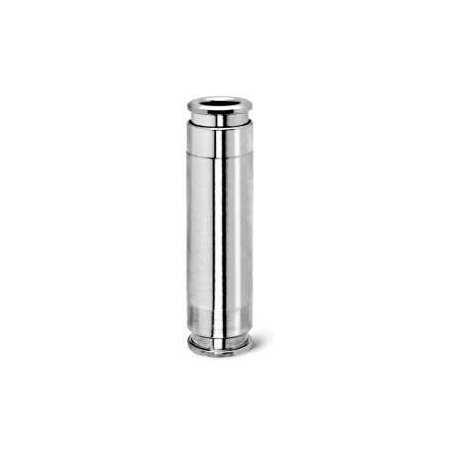

8580 6 RACOR SUPER RAPIDO UNION MANG.

8580 6

RACOR SUPER RAPIDO UNION MANG.

8580 6
Fittings Mod. 8580

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Diameters ø 4, 6, 8, 10, 12 mm
Threads Gas cylindrical ISO-228 (BSP)
Temperature -20°C ÷ 80°C
Tube to connect Polyamide (PA) 6 - 11 - 12, Polyurethane (PU), Polyethylene (PE), hytrel Polyester, PTFE and metal tubing (properly shaped)
Medium All fluids compatible with the fitting materials requiring a leak-tight seal, e.g. water. For other fluids, please contact our technicians.
Materials body and gripper: nickel-plated brass seals: NBR
Working pressure -0.9 ÷ 60 bar The Series 8000 fittings can withstand a maximum pressure of 60 bar. However, the tube used might affect or limit the operating pressure considerably.
