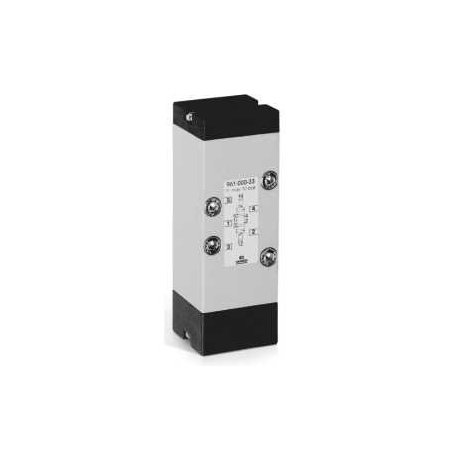

963-000-33 VALVULA 5/3 C. CERRADOS ISO 3

Referencia 963-000-33

VALVULA 5/3 C. CERRADOS ISO 3

963-000-33
5/3-way valve, monostable, with stable central position - ISO 1, 2, 3

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Operating pressure	max. press. 10 bar (for minimum pressures see descriptions)
Nominal pressure	6 bar
Nominal flow	ISO 1 = 900 Nl/min ISO 2 = 1610 Nl/min ISO 3 = 4350 Nl/min
Operating temperature	0 ÷ 60°C (with dry air at -20°C)
Fluid	filtered air, without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil and to never interrupt the lubrication.
Electropneumatic interface	according CNOMO Standards
