EN651-11-P13 VALVULA, T-19, 5/3, C.C. C/ROSC-1/4, 24V

Referencia EN651-11-P13

VALVULA, T-19, 5/3, C.C. C/ROSC-1/4, 24V

EN651-11-P13

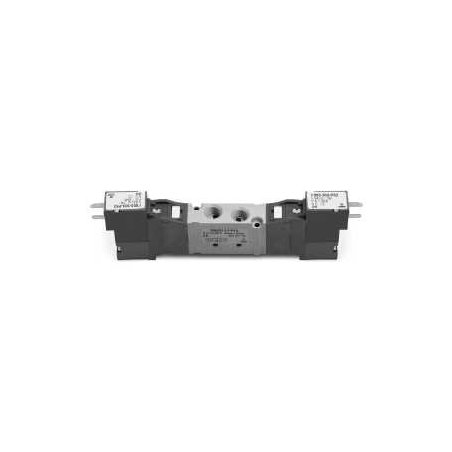

Electro-pneumatic valve, solenoid P, W - size 19

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction	spool-type
Valve functions	5/2 - 5/3 CC - 5/3 CO - 5/3 CP
Materials	body, spool, bases = AL end-covers = tecnnopolymer joints = NBR PU
Ports	G1/8 - G1/4
Temperature	0°C min. + 50° C max
Fluid	filtered air without lubricant. If lubricated air is used, it is recommended to use ISOVG32 oil and to never interrupt lubrication.
Voltage	see coding
Voltage tolerance	± 10%
Power consumption	2W, 1W
Class of insulation	class F
Protection class	IP65 with connector DIN 40050
