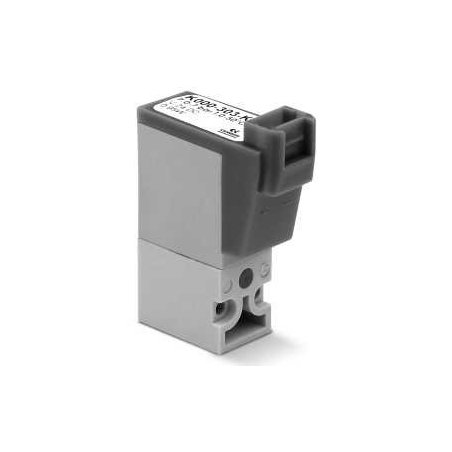

IMAGEN DE REFERENCIA

  • Sobre pedido

K000-403-KB3 ELECTROVALVULA 3/2 N.A. 24V C.D.

0 Reseñas(s)
K000-403-KB3

ELECTROVALVULA 3/2 N.A. 24V C.D.

K000-403-KB3
3/2-way NC solenoid valve (in-line electrical connection)

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. Function Orifice Ø (mm) kv (l/min) Qn (Nl/min) Min÷max pressure (bar)
K000-403-KB* 3/2 NO 0.8 0.20 - 0 ÷ 5
Series general data


TECHNICAL FEATURES
Function Operation Pneumatic connections Nominal diameter Nominal flow Flow coefficient kv (l/min) Operating pressure Operating temperature Media Response time Manual override Installation 2/2 NC - 3/2 NC - 3/2 NO direct acting poppet type on subbase by means of screws 0.6 ... 1 mm see the kv 0.12 ... 0.30 0 ÷ 3 ... 7 bar 0°C ÷ 50°C filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas ON <10 msec – OFF <10 msec monostable button (for 3/2 version only) in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body Seals Internal parts PBT technopolymer NBR or FKM stailess steel
ELECTRICAL FEATURES
Voltage Voltage tolerance Power consumption Duty cycle Electrical connection Protection class 24 V DC - 12 V DC - 6 V DC - other voltages on demand ±10% 1 W ED 100% connector - thin cabels L = 300 mm IP50
Special versions available on demand
