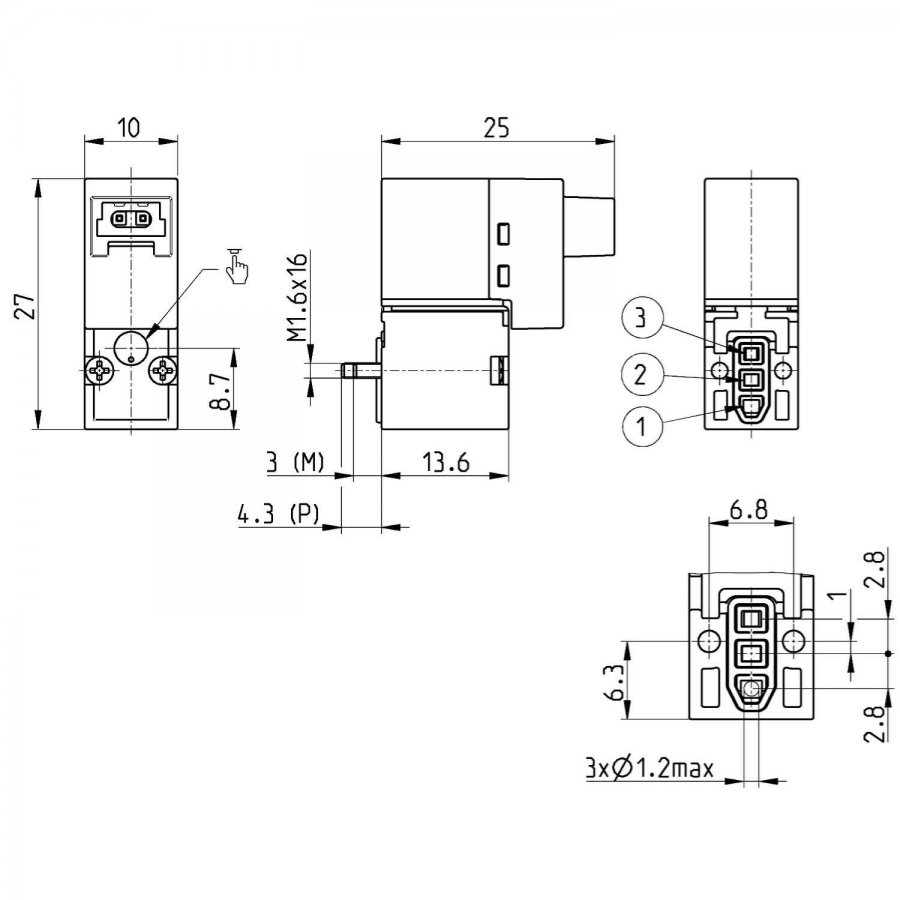

IMAGEN DE REFERENCIA

  • Por pedido

KN000-303-K13 ELECTROVALVULA 3/2 NC, 0.65, 24VCD

0 Reseñas(s)
KN000-303-K13

ELECTROVALVULA 3/2 NC, 0.65, 24VCD

KN000-303-K13
3/2-way solenoid valve - 90° electrical connection

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. Function Orifice Ø (mm) kv (l/min) Qn (Nl/min) Min÷max pressure (bar) Power consumption (W) Symb.
KN000-303-K1* 3/2 NC 0.65 0.15 10 0 ÷ 7 1.3 / 0.25 EV04
Series general data


TECHNICAL FEATURES
Function Operation Pneumatic connections Nominal diameter Nominal flow Flow coefficient kv (l/min) Operating pressure Operating temperature Media Response time Manual override Installation 3/2 NC - 3/2 NO - 3/2 UNI direct acting poppet type on subbase with ISO 15218 interface by means of screws 0.65 ... 1.1 mm 10 ... 25 Nl/min (air @ 6 bar ΔP 1 bar) 0.15 ... 0.39 0 ÷ 3 ... 7 bar 0°C ÷ 50°C filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas ON <10 msec - OFF <10 msec monostable button in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body Seals Internal parts PBT technopolymer FKM, NBR stainless steel
ELECTRICAL FEATURES
Voltage Voltage tolerance Power consumption Duty cycle Electrical connection Protection class 5 ... 24 V DC - other voltages on demand 1.3/0.25 ... 4/1 W (inrush/holding) ED 100% connector IP50
Special versions available on demand
