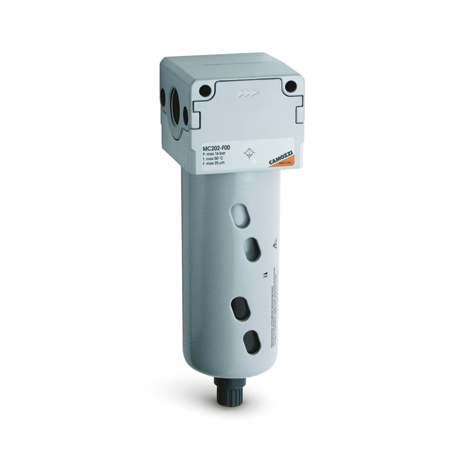

MC104-F10 FILTRO 1/4 5 MICRAS VASO ALUM.

MC104-F10

FILTRO 1/4 5 MICRAS VASO ALUM.

MC104-F10
Filters Series MC

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

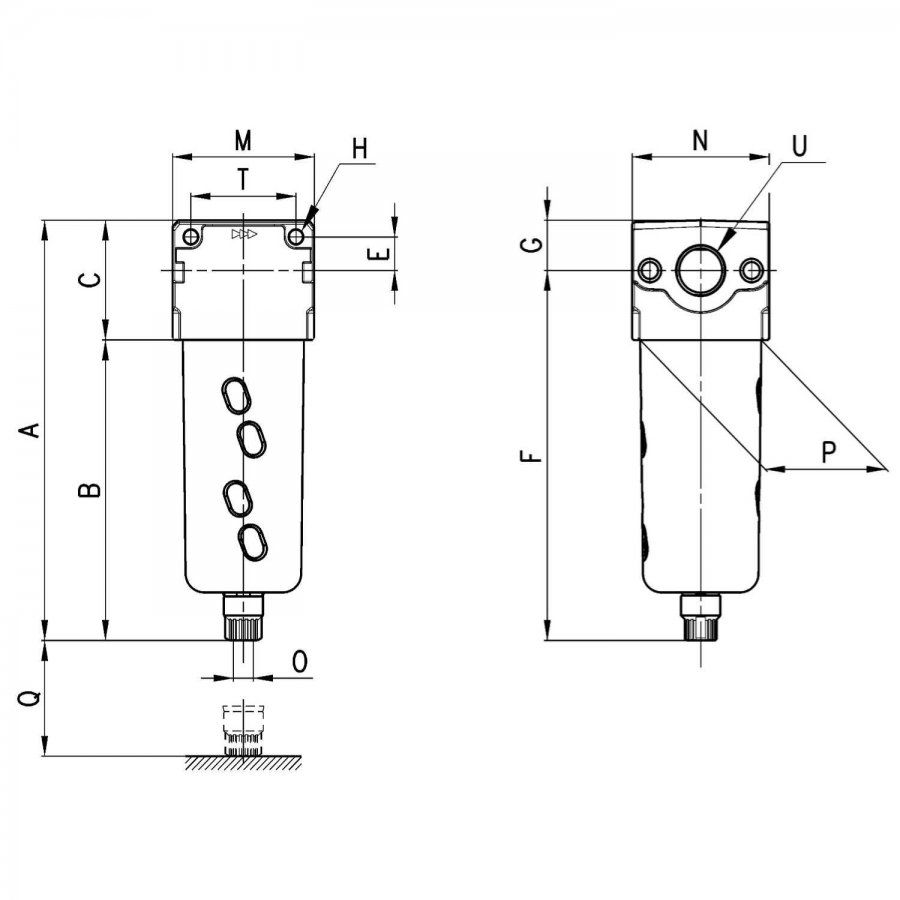

Mod. A B C E F G H M N O P Q T U
MC104-FB0 143 102 41 11 126,5 16,5 4,5 45 45 G1/8 37 54 35 G1/4
Series general data

Construction modular, coalescing elements
Materials zama, NBR, technopolymer
Ports G1/4 G3/8 G1/2
Weight kg 0.342 0.718 0.688
Mounting vertical in line or wall-mounting
Operating temperature -5°C ÷ 50°C at 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air according to ISO 8573-1:2010 Class 1.8.1 with 0.01 μm filtering element
Draining of condensate manual - semi-automatic (standard), automatic, with depressurisation, protected depressurisation, without drain with port G1/8
Finish enamelled
Operating pressure with standard drain and protected depressurisation 0.3 ÷ 16 bar with depressurisation 0.3 ÷ 10 bar with automatic drain 1.5 ÷ 12 bar for G3/8 and G1/2
Residual oil content with inlet at 3 mg/m³ < 0.01mg/m³
Oil retain efficiency 99.80%
Particles retain efficiency 99.99999%
Nominal flow see FLOW DIAGRAMS on the following pages
Fluid compressed air
