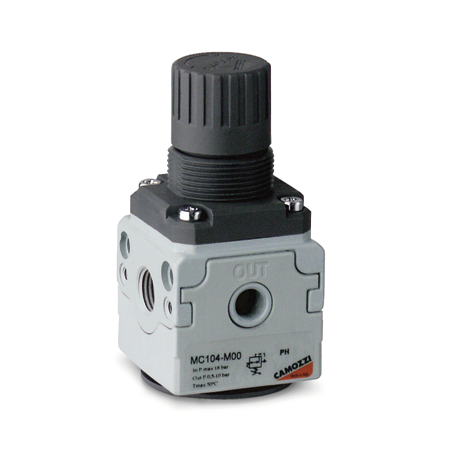

REGULADOR MANIFOLD DE PRESION 1/4
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

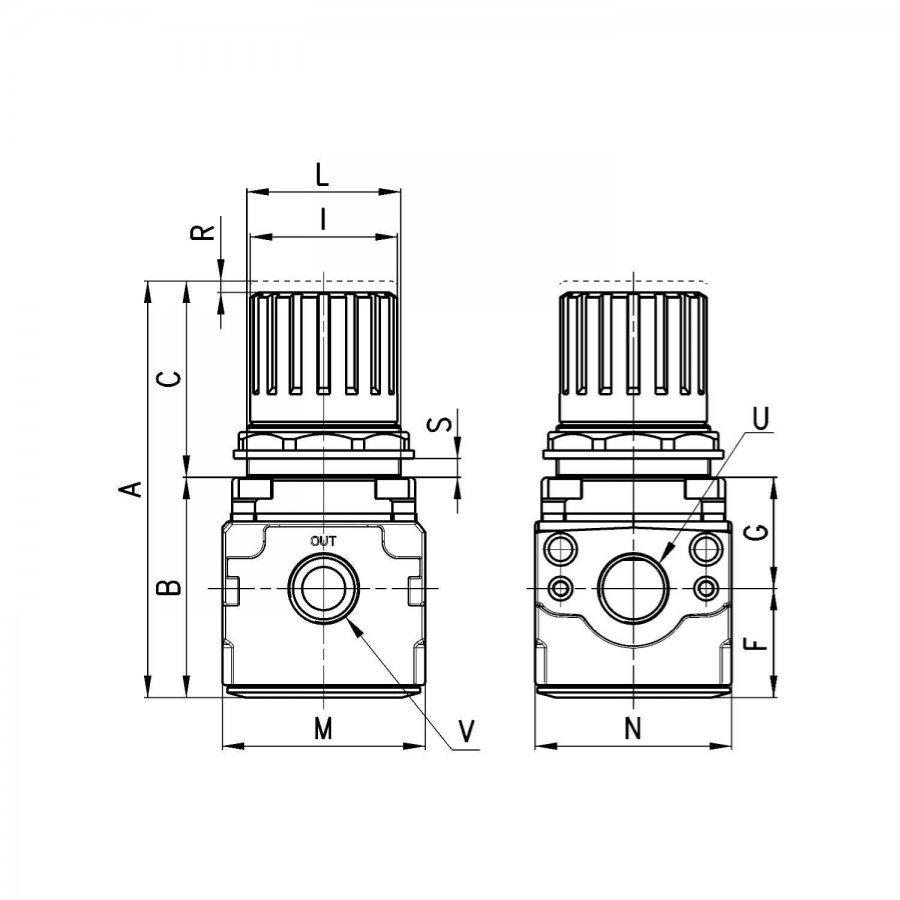

Mod. | A | B | C | F | G | I | L | M | N | R | S | U | V |
MC104-M00 | 94 | 55 | 39 | 28 | 28 | 28 | 30X1,5 | 45 | 45 | 3 | 0 ÷ 6 | G1/4 | G1/8 |
Construction | compact modular, diaphragm type |
Materials | zama, NBR, technopolymer |
Port | G1/4 |
Weight | kg 0,320 |
Pressure gauge ports / outlet | G1/8 |
Mounting | in-line, wall or panel mounting (in any position) |
Operating temperature | -5°C ÷ 50°C (with the dew point of the fluid lower than 2°C at the min. working temperature) |
Finishing | enamelled |
Inlet pressure | 0 ÷ 16 bar |
Outlet pressure | 0.5 ÷ 10 bar or 0 ÷ 4 bar |
Flow | see the FLOW DIAGRAM on the following page |
Secondary pressure relieving | standard |
