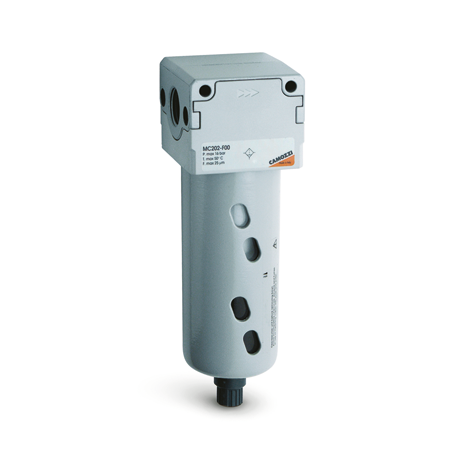

IMAGEN DE REFERENCIA

MC202-F03 FILTRO AUTOMATICO 1/2, 25 MICRAS S. MC

MC202-F03

FILTRO AUTOMATICO 1/2, 25 MICRAS S. MC

MC202-F03
Filters Series MC

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

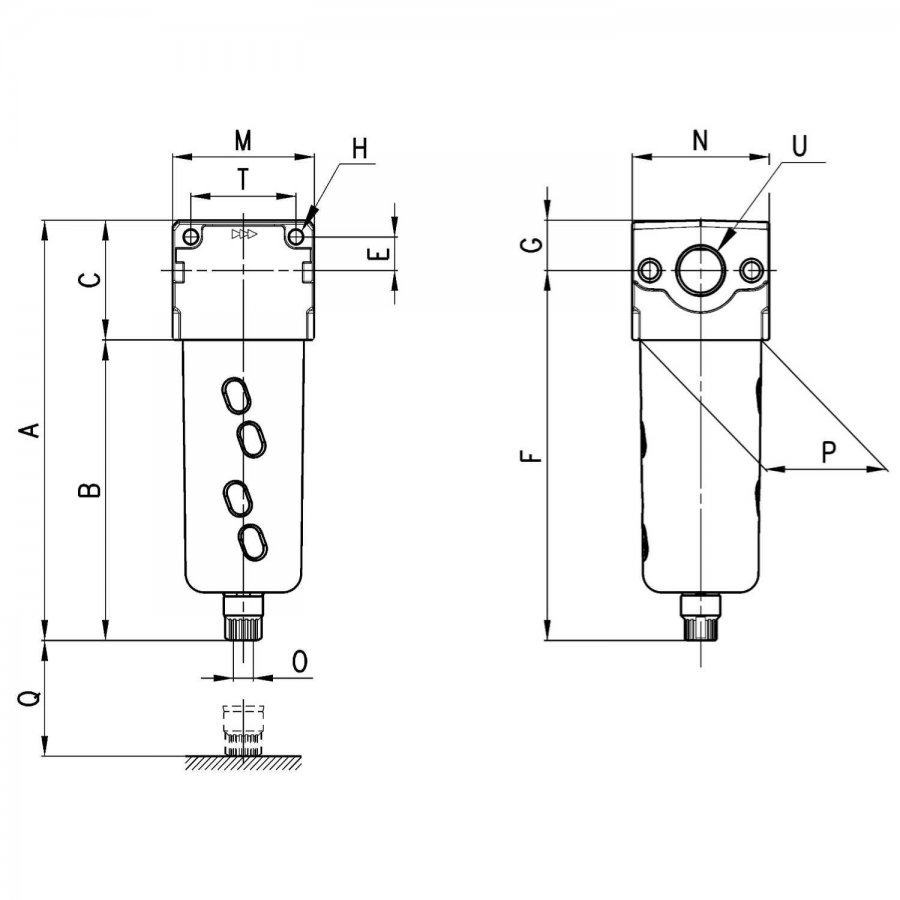

Mod. A B C E F G H M N O P Q T U
MC202-F00 184 133 51 14 163 21 5,5 62 60 G1/8 53 72 46 G1/2
Series general data

Construction compact modular with filtering element in HDPE
Materials zama, NBR, tecnopolymer
Ports G1/4 G3/8 G1/2
Max condensate capacity cm³ 28 cm³ 72 cm³ 72
Weight kg 0,339 kg 0,718 kg 0,688
Mounting vertical in-line or wall-mounting
Operating temperature -5°C ÷ 50°C at 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air according to ISO 8573-1:2010 Class 6.8.4 with 5μm filtering element Class 7.8.4 with 25μm filtering element
Draining of condensate semi-automatic manual, automatic protected depressurisation, direct G1/8 exhaust
Finishing enamelled
Operating pressure with standard drain and protected depressurisation 0.3 ÷ 16 bar with depressurisation 0.3 ÷ 10 bar with automatic drain 1.5 ÷ 12 bar for G3/8 and G1/2
Nominal flow see FLOW DIAGRAMS on the following pages
Fluid compressed air
