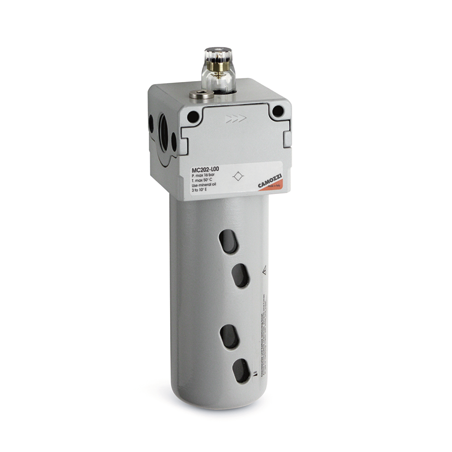

LUBRICADOR 1/2" SERIE MC
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

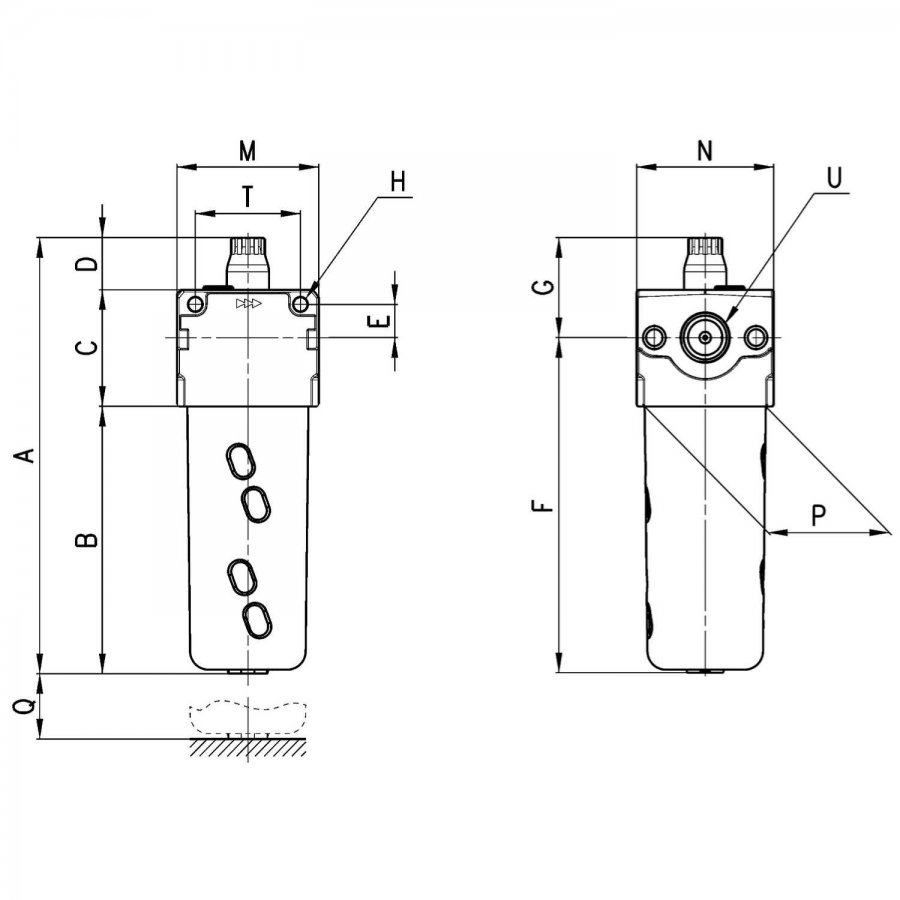

Mod. | A | B | C | D | E | F | G | H | M | N | P | Q | T | U |
MC202-L00 | 187 | 115 | 50 | 22 | 14 | 144 | 43 | 5,5 | 62 | 60 | 53 | 117 | 46 | G1/2 |
Construction | modular compact |
Materials | zama, NBR, technopolymer |
Ports | G1/4 G3/8 G1/2 |
Oil capacity | cm³ 37 170 170 |
Weight | kg 0,338 0,712 0,674 |
Mounting | vertical in-line or wall-mounting |
Operating temperature | -5°C ÷ 50°C at 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) |
Oil refilling | without pressure (G1/4) also during use (G3/8 - G1/2) |
Oil for lubrication | use ISO VG32 oils. Once applied, the lubrication should never be interrupted. |
Finishing | enamelled |
Operating pressure | 0 ÷ 16 bar |
Min. air consumption for lubr (Nl/min) at 1 bar at 6 bar | G1/4 - G3/8 - G1/2 8 - 8 - 8,5 15 - 17,5 - 15,5 |
Nominal flow | see FLOW DIAGRAMS on the following pages |
Fluid | compressed air |
