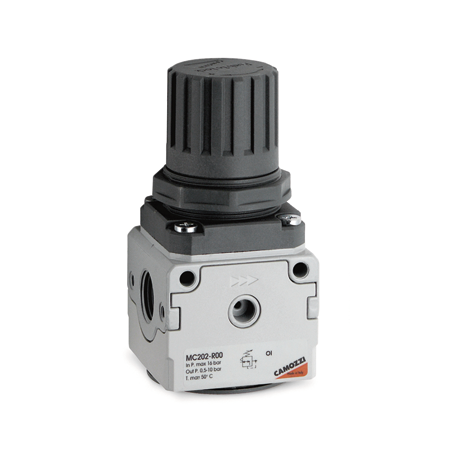

MC202-R10 REGULADOR 1/2", SERIE MC, 0-4BARS

Referencia MC202-R10

REGULADOR 1/2", SERIE MC, 0-4BARS

MC202-R10
Pressure regulators Series MC

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

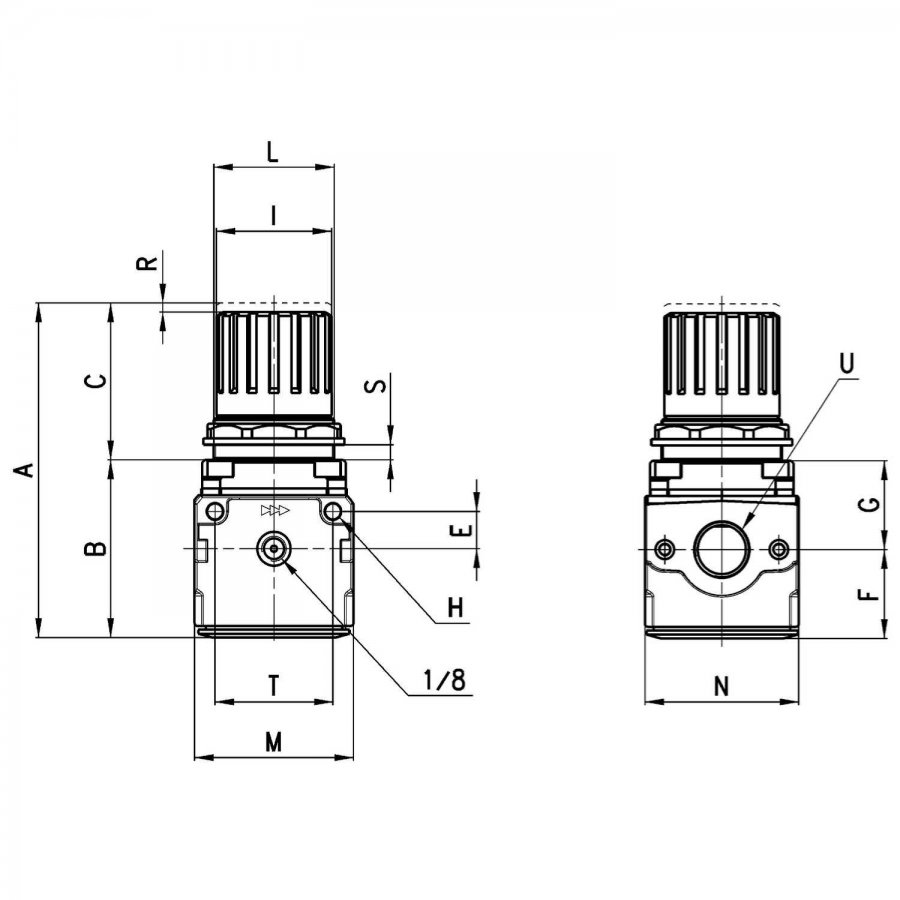

Code properties

Mod.

MC202-R00

127

5,5

47X1,5

3,5

0÷9

G1/2

Series general data

Construction	modular, compact, diaphragm type
Materials	zama, brass, NBR, technopolymer
Ports	G1/4 G3/8 G1/2
Weight	kg 0,323 0,644 0,624
Mounting	in-line, wall or panel mounting (in any position)
Operating temperature	-5°C ÷ 50°C (with the dew point of the fluid lower than 2°C at the min. working temperature)
Finishing	enamelled
Inlet pressure	0 ÷ 16 bar
Outlet pressure	0.5 ÷ 10 bar (standard) or 0 ÷ 2 bar; 0 ÷ 4 bar and 0.5 ÷ 7 bar
Nominal flow	see FLOW DIAGRAMS on the following pages
Secondary pressure (relieving)	with relieving (standard) without relieving
Fluid	compressed air
