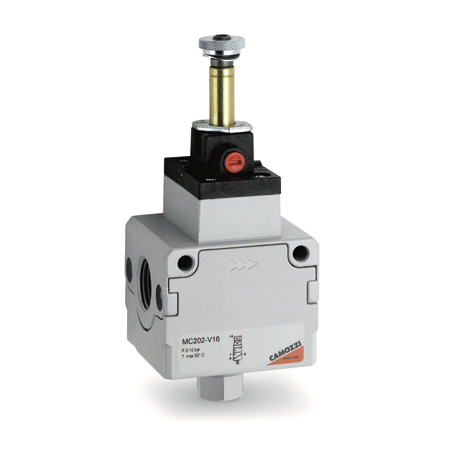

MC202-V16 VALVULA DE 3 VIAS, ELECTRONEUMATICA

Referencia MC202-V16

VALVULA DE 3 VIAS, ELECTRONEUMATICA

MC202-V16
Lockable isolation valves Series MC - electro-/pneumatic version

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.

Symbol

MC202-V16

142,5

46,5

5,5

33,5

G1/2

G1/4

EV10

Series general data

Construction	modular compact, poppet-type
Materials	zama, NBR, technopolymer
Ports	G1/4; G3/8; G1/2
Weight	kg 0.277 kg 0.536 kg 0.514
Mounting	in- line, wall or panel mounting (in any position)
Operating temperature	-5°C ÷ 50°C (with the dew point of the fluid lower than 2°C at the min. working temperature)
Finishing	enamelled
Operating pressure	Manual valve: -0.8 bar ÷ 10 bar Electro-pneumatic valve: 2 bar ÷ 10 bar Pneumatic valve: -0.8 bar ÷ 10 bar (with pilot 2 ÷ 10 bar)
Nominal exhaust flow at 6 bar with Δp = 1 bar	G1/4 = 1080 Nl/min G3/8 = 2380 Nl/min G1/2 = 2380 Nl/min
Nominal flow	see FLOW DIAGRAMS on the following pages
Fluid	compressed air
