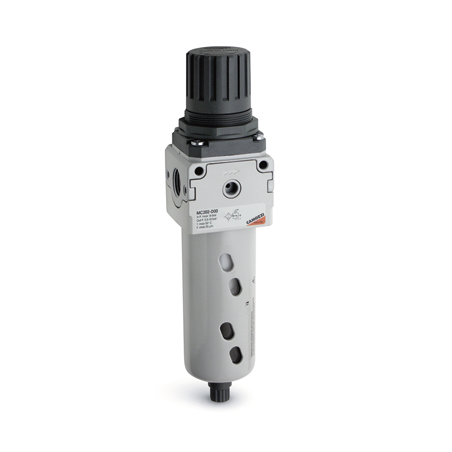

IMAGEN DE REFERENCIA

MC238-D00 FILTRO-REGULADOR 3/8", 25 MICRA SERIE

MC238-D00

FILTRO-REGULADOR 3/8", 25 MICRA SERIE

MC238-D00
Filter-regulators Series MC

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

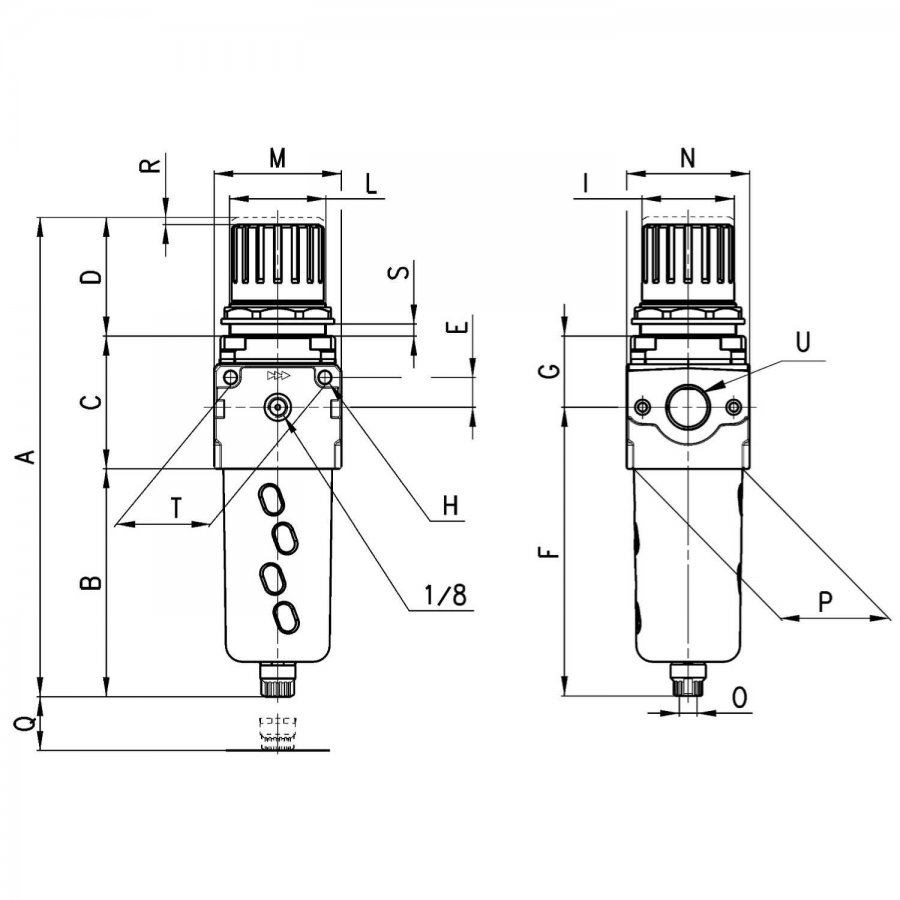

Code properties

Mod.ABCDEFGHILMNOPQRSTU
MC238-D00256,5133645914162355,545M47x1,56259G1/853723,50 ÷ 946G3/8

Series general data

Constructioncompact modular with filtering element in HDPE
Materialszama, NBR, technopolymer
PortsG1/4 G3/8 G1/2
Condensate capacitycm³ 28 72 72
Weightkg 0,443 0,948 0,928
Mountingvertical in-line or wall-mounting
Operating temperature-5°C ÷ 50°C at 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air according to ISO 8573-1:2010Class 6.8.4 with 5μm filtering element Class 7.8.4 with 25μm filtering element
Draining of condensatesemi-automatic manual (standard), automatic, with depressurisation, protected depressurisation, without drain with port G1/8
Finishingenamelled
Inlet pressurewith standard drain and protected depressurisation 0,3 ÷ 16 bar with depressurisation 0,3 ÷ 10 bar with automatic drain 1,5 ÷ 12 bar for G3/8 and G1/2
Outlet pressure0.5 ÷ 10 bar(standard), 0 ÷ 2 bar; 0 ÷ 4 bar e 0.5 ÷ 7 bar
Nominal flowsee FLOW DIAGRAMS on the following pages
Fluidcompressed air
