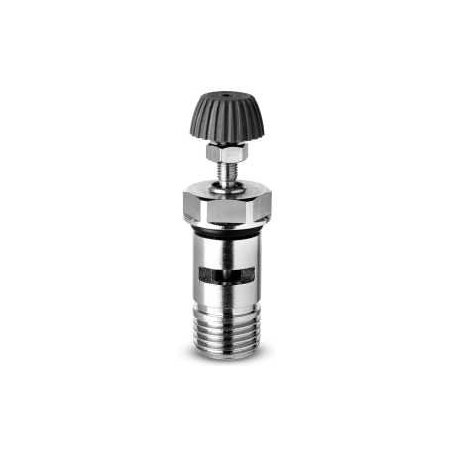

MCU 708-3/8 REGULADOR DE CAUDAL CIL. UNIDIR. MAN.

Referencia MCU 708-3/8

REGULADOR DE CAUDAL CIL. UNIDIR. MAN.

MCU 708-3/8
Unidirectional flow controllers Series MCU

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

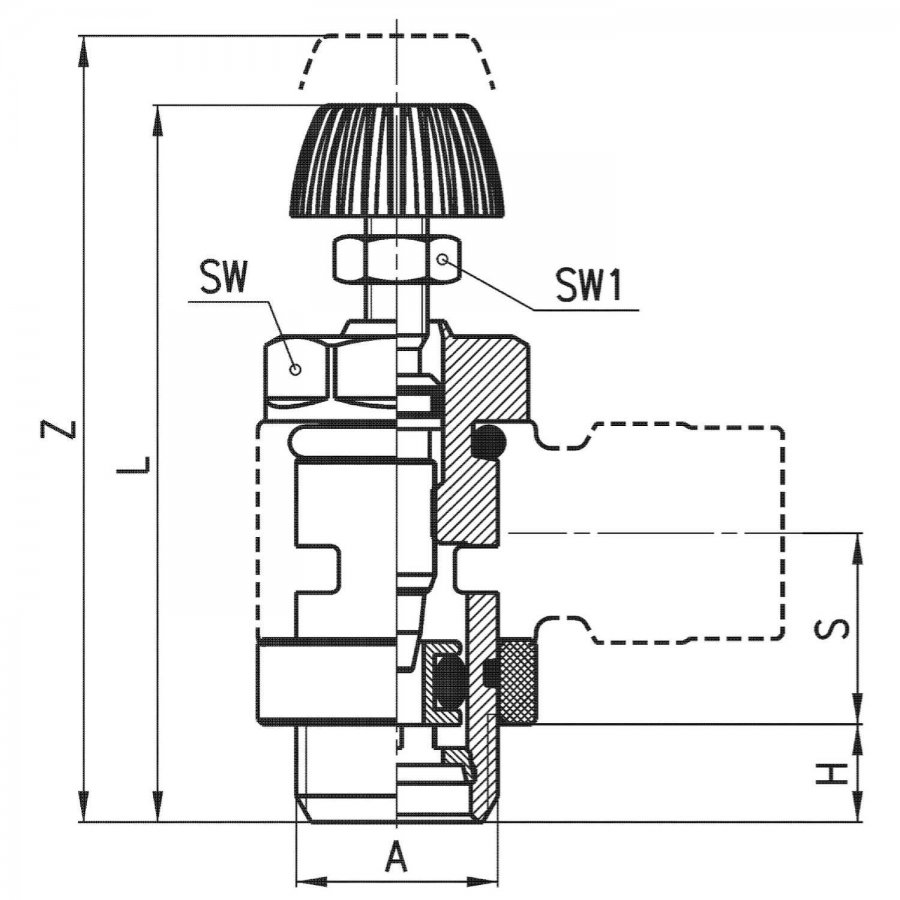

Mod.	A	H	L	S	SW	SW1	Z
MCU 708-3/8	G3/8	7	52,5	12,5	18	10	60,5

Series general data

Construction	needle type
Valve group	unidirectional and bidirectional controller
Materials	body and regulation screw: M5 = stainless steel; 1/8 - 1/4 - 3/8 - 1/2 = OT; seals = NBR
Mounting	by male thread
Ports	M5 - G1/8 - G1/4 - G3/8 - G1/2
Installation	in any position
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Operating pressure	1 ÷ 10 bar
Nominal pressure	6 bar
Nominal flow	see graph
Nominal diameter	M5 = 1,5 mm - G1/8 = 2 mm - G1/4 = 4 mm - G3/8 = 7 mm - G1/2 = 12 mm
Fluid	filtered air
