IMAGEN DE REFERENCIA

MD1-B CARTUCHO UNION INTERMEDIO CON

0 Reseñas(s)
MD1-B

CARTUCHO UNION INTERMEDIO CON

MD1-B

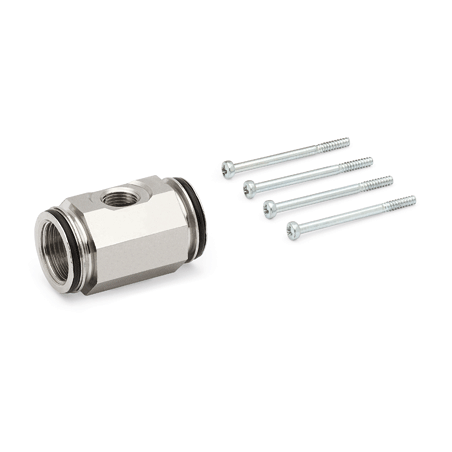

Intermediate joining cartridge with derivation Mod. MD1-B

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod.
MD1-B
Series general data

Construction modular, compact
Materials see TABLE OF MATERIALS on the following page
Ports - Take-off block Ports - Joining cartridge with derivation Ports - Joining cartridge with VNR with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm 3/8 3/8
Derivations - Take-off block Derivations - Joining cartridge 4x 1/8 2x 1/8
Fixing - Take-off block in-line; wall-mounting by means of through holes in the body or with a support bracket
Operating temperature -5°C ÷ 50°C
Operating pressure 0 ÷ 16 bar
Nominal flow at 6 bar with ∆p = 1 bar MD1-B00-1/8 = 1300 Nl/min MD1-B00-1/4 = 2300 Nl/min MD1-B00-3/8 = 3400 Nl/min
Fluid compressed air
