MD1-B00-1/4 MODULO DE DERIVACION 1/4"

Referencia MD1-B00-1/4

MODULO DE DERIVACION 1/4"

MD1-B00-1/4

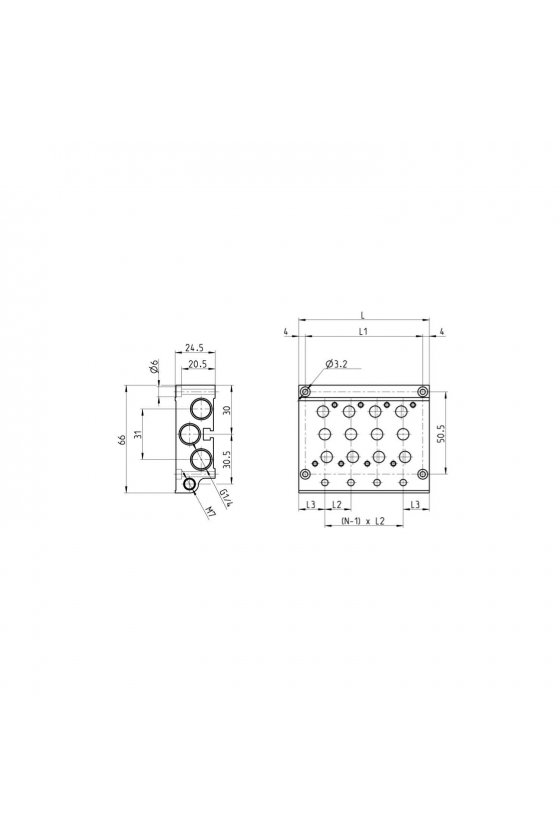

Series MD take-off block - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.

Weight (Kg)

MD1-B00-1/4

G1/4

G1/8

28.5

G1/8

26.2

Ø4

9.5

61.2

22.7

51.7

35.1

34.6

0.2

Series general data

Construction	modular, compact
Materials	see TABLE OF MATERIALS on the following page
Ports - Take-off block Ports - Joining cartridge with derivation Ports - Joining cartridge with VNR	with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm 3/8 3/8
Derivations - Take-off block Derivations - Joining cartridge	4x 1/8 2x 1/8
Fixing - Take-off block	in-line; wall-mounting by means of through holes in the body or with a support bracket
Operating temperature	-5°C ÷ 50°C
Operating pressure	0 ÷ 16 bar
Nominal flow at 6 bar with ∆p = 1 bar	MD1-B00-1/8 = 1300 Nl/min MD1-B00-1/4 = 2300 Nl/min MD1-B00-3/8 = 3400 Nl/min
Fluid	compressed air
